Laser Safety Eyewear TERMINATOR Filter #0249

000-K0249-TERM-54

The Laser Safety Eyewear TERMINATOR are light and sporty laser safety spectacles made of special plastics. This featherweight frame offers perfect fit, due to a comfortable and soft nose-pad, which can be adjusted by the user individually. Furthermore the temples can be adjusted individually in length and angle. The wrap-around lenses provide perfect side impact protection without compromising the field of vision. Ventilation slots between lenses and frame allow an optimal air circulation, which is preventing fogging.

The Laser Safety Filter #0249 by PROTECT-Laserschutz is suitable for protection against laser pointer attacks (RGB) in particular. The filter also was tested successfully for Impact Level (F) according to EN166, and can be used as protection eyewear for police and task forces. The laser safety filter consists of brown polycarbonate, and offers a visual light transmission (VLT) of 16% although its covering a wide range of visible wavelengths. Additionally the filter can be used as alignment filter in several wavelength ranges. The laser safety filter is CE certified in accordance with the requirements of EN207 and EN208 and is available in different frames.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection level

Specifications Filter

Specifications Frame

Order Information

All avialable frames

The laser safety filter #0249 is available in the following frames:

No data found!

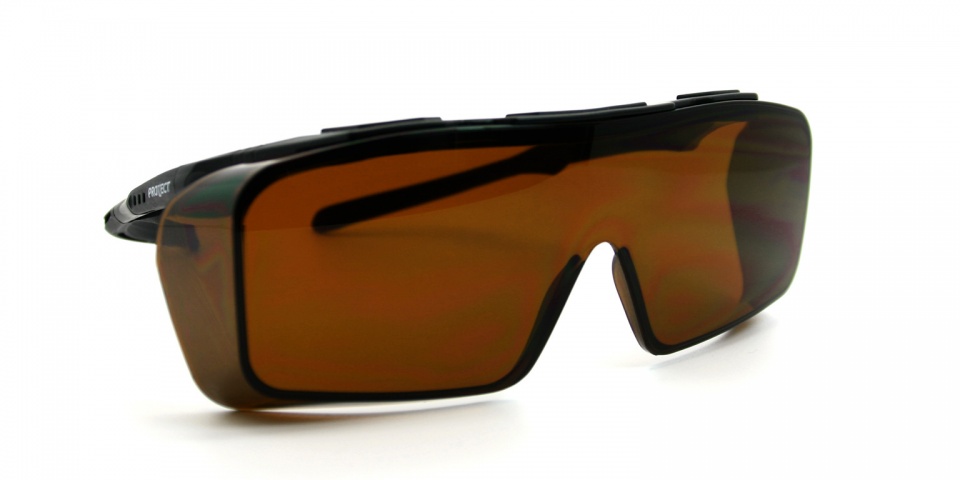

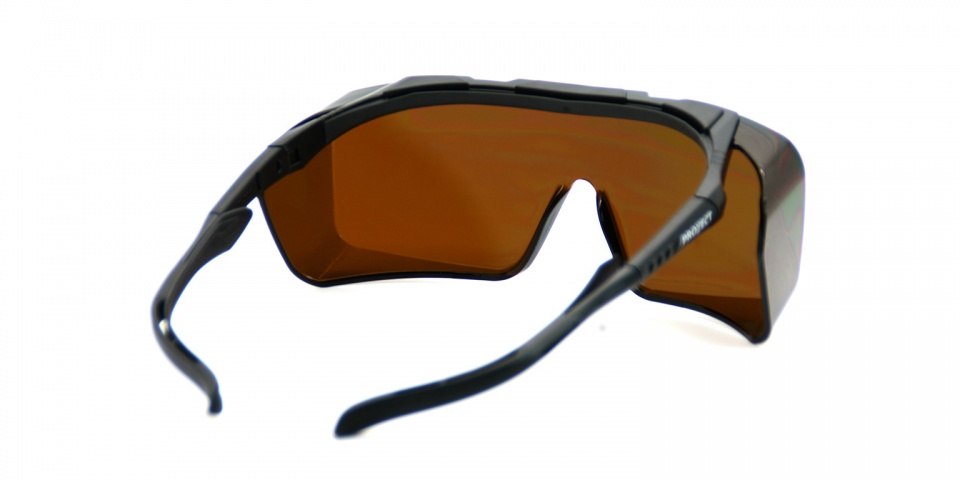

Laser Safety Eyewear ONTOR Filter #0249

000-K0249-ONTO-01

The Laser Safety Eyewear ONTOR are lightweight laser safety goggles made of special plastics, as perfect solution to wear over prescription glasses. This frame offers a large field of vision, and lateral impact protection. The temples can be adjusted individually in length and inclination, and soft and rubberized face foam improves the wearing comfort.

Protection level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0249 is available in the following frames.

No data found!

Laser Safety Filter #0248

000-G0248

The Laser Safety Filter #0248 by PROTECT-Laserschutz is suitable for many lasers in the UV-, and visible range of light, like Excimer (193nm), UV (248nm), harmonic Nd:YAG (266 nm + 355nm) and HeNe (633nm). But the filter covers also many laser wavelengths in the IR sector, like Alexandrit (755nm), Ti:Saphir (800nm), disc laser (1030 nm), Nd:YAG (1064 nm) and fibre laser (1080 nm). The laser safety filter consists of different mineral glasses, with additional dielectric layers and has an visual light transmission (VLT) of 30%. The laser safety filter is CE certified in accordance with the requirements of EN207.

Protection Level

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
180 – 315	D LB10 + IR LB5 + M LB6Y
> 315 – 465	D LB6 + IR LB7 + M LB7Y
> 465 – 470	D LB6 + IR LB7 + M LB7Y
> 470 – 475	DIRM LB6
> 475 – 480	DIRM LB4
> 480 – 484	DIRM LB3
> 484 – 487	DIRM LB2
> 487 – 494	DIRM LB1
608 – 620	DIRM LB1
> 620 – 624	DIRM LB3
> 624 – 629	DIRM LB4
> 629 – 634	DIRM LB5
> 634 – 640	DIRM LB6
> 640 – 648	DIRM LB7
> 648 – 659	D LB7 + IR LB8 + M LB8Y
> 659 – 1400	D LB7 + IR LB9 + M LB8Y

Specifications Filter

Order Information

All available frames

The Laser Safety Filter #0248 is available in the following frames.

No data found!

UV-Laser Safety Filters 248 nm

The following filters are available for your choice

No data found!

UV-Laser Safety Filters 248 nm

The following filters are available for your choice

Filter #0248

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
180 – 315	D LB10 + IR LB5 + M LB6Y
> 315 – 465	D LB6 + IR LB7 + M LB7Y
> 465 – 470	D LB6 + IR LB7 + M LB7Y
> 470 – 475	DIRM LB6
> 475 – 480	DIRM LB4
> 480 – 484	DIRM LB3
> 484 – 487	DIRM LB2
> 487 – 494	DIRM LB1
608 – 620	DIRM LB1
> 620 – 624	DIRM LB3
> 624 – 629	DIRM LB4
> 629 – 634	DIRM LB5
> 634 – 640	DIRM LB6
> 640 – 648	DIRM LB7
> 648 – 659	D LB7 + IR LB8 + M LB8Y
> 659 – 1400	D LB7 + IR LB9 + M LB8Y

Filter #0244

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
180 – 315	D LB10 + IR LB5 + M LB6Y
> 315 – 532	D LB6 + IR LB8 + M LB7Y
> 532 – 534	DIRM LB6
535	DIRM LB5
> 535 – 538	DIRM LB4
> 538 – 544	DIRM LB3
> 544 – 546	DIRM LB2
> 546 – 554	DIRM LB1
647 – 691	DIRM LB1
> 691 – 721	DIRM LB2
> 721 – 744	DIRM LB3
> 744 – 765	DIRM LB4
> 765 – 786	DIRM LB5
> 786 – <800	DIRM LB6
800 – 1068	D LB6 + IR LB7 + M LB6
> 900 – 1020	D LB6 + IR LB8 + M LB7Y
> 1020 – 1068	D LB6 + IR LB9 + M LB7Y
> 1068 – 1106	DIRM LB6
> 1106 – 1114	DIRM LB5
> 1114 – 1124	DIRM LB4
> 1124 – 1137	DIRM LB3
> 1137 – 1153	DIRM LB2
> 1153 – 1184	DIRM LB1
9000 – 11000	DI LB3

Filter #0358

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
180 – 315	D LB10 + IR LB4 + M LB6Y
> 315 – 534	D LB5 + IR LB8 + M LB8Y
> 534 – 537	D LB5 + IRM LB6
> 537 – 545	DIRM LB3
> 545 – 552	DIRM LB2
> 552 – 562	DIRM LB1
690 – 766	DIRM LB1
> 766 – 815	DIRM LB2
> 815 – 844	DIRM LB3
> 845 – 865	DIRM LB4
> 865 – 880	DIRM LB5
> 880 – 905	DIRM LB6
> 905 – 939	D LB6 + IRM LB7
> 939 – 1000	D LB7 + IR LB8 + M LB8Y
> 1000 – 1065	D LB7 + IR LB9 + M LB8Y
> 1065 – 1100	D LB7 + IR LB8 + M LB8Y
> 1100 – 1125	DIRM LB7
> 1125 – 1150	DIRM LB6
> 1150 – 1185	DIRM LB5
> 1185 – 1235	DIRM LB4
> 1235 – 1375	DIRM LB3
> 1375 – 1400	DIRM LB2
> 1400 – 1744	DIRM LB2
> 1744 – 1918	DIRM LB1

Filter #0240

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
180 – 315	D LB10 + IR LB5
> 315 – 532	D LB7 + IR LB8 + M LB8Y
800 – 820	DIR LB2
> 820 – 840	DIR LB3
> 840 – 860	DIR LB4
> 860 – 900	DIR LB7
> 900 – 1100	DR LB8 + I LB9 + M LB9Y
>1100 – 1400	D LB7 + IR LB8 + M LB8Y
>1400 – 3000	DIR LB4
>4000 – 9000	DIR LB4
9000 – 11000	DI LB5 + R LB4

Filter #0216

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
180 – 315	D LB10 + IR LB5
> 315 – 565	D LB6 + IR LB8 + M LB8Y
> 565 – 585	D LB6 + IR LB7 + M LB7Y
> 585 – 590	DIRM LB6
> 590 – 595	DIRM LB4
> 595 – 600	DIRM LB2

Filter #0194

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
180 – 315	D LB9 + IR LB4 + M LB6Y
316 – 348	D LB5 + IR LB7 + M LB7Y
349 – 385	D LB5 + IR LB6 + M LB6
386 – 394	D LB5 + IR LB5 + M LB5
395 – 400	D LB4 + IR LB4 + M LB4
401 – 406	D LB3 + IR LB3 + M LB3
407 – 413	D LB2 + IR LB2 + M LB2
414 – 424	D LB1 + IR LB1 + M LB1
532	D LB3 + IR LB3 + M LB3
525 – 570	D LB1 + IR LB1 + M LB1
571 – 577	D LB2 + IR LB2 + M LB2
578 – 584	D LB3 + IR LB3 + M LB3
585 – 594	D LB4 + IR LB4 + M LB4
595 – 605	D LB5 + IR LB5 + M LB5
606 – 700	D LB5 + IR LB6 + M LB6
701 – 1120	D LB7 + IR LB7 + M LB7Y
1121 – 1169	D LB6 + IR LB6 + M LB6
1170 – 1230	D LB5 + IR LB5 + M LB5
1231 – 1309	D LB4 + IR LB4 + M LB4
1310 – 1378	D LB3 + IR LB3 + M LB3
1379 – 1400	D LB2 + IR LB2 + M LB2

Filter #0249

Wavelength (in nm)	Protection levels acc. to EN207
PF S CE
180 – 315	D LB8 + IR LB4
> 315 – 532	DIR LB4 + M LB4Y
> 532 – 535	DIRM LB3
> 535 – 542	DIRM LB2
> 542 – 552	DIRM LB1
605 – 629	DIRM LB1
> 629 – 635	DIRM LB2
> 635 – 660	DIRM LB3
800 – 928	DIRM LB3
> 928 – 1038	DIR LB3 + M LB4Y
>1038 – 1070	DIRM LB3

10 W 2*E-3J 532 RB4
0,1 W 2*E-5J 630-635 RB2
1 W 2*E-4J 636-662 RB3
0,1 W 2*E-5J 663-666 RB2

Filter #0247

Wavelength (in nm)	Protection levels acc. to EN207
	PF S CE
180 – 315	D LB8 + IR LB4
750 – 755	DIR LB1
756 – 768	DIR LB2
769 – 780	DIR LB3
781 – <800	DIR LB4
800 – 820	DIR LB5
>820 – 833	DIR LB4
834 – 843	DIR LB3
844 – 850	DIR LB2

Filter #0246

Wavelength (in nm)	Protection levels acc. to EN207
	PF S CE
180 – 315	D LB8 + IR LB4
750 – 753	DIR LB1
754 – 768	DIR LB2
769 – 780	DIR LB3
781 – 799	DIR LB4
800 – 820	DIR LB5
821 – 833	DIR LB4
834 – 843	DIR LB3
844 – 850	DIR LB2

Filter #0241

Wavelength (in nm)	Protection levels acc. to EN207
	PF S CE
180 – 315	D LB8 + IR LB4
9000 – 11000	DI LB3

Filter #0235

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
180 – 315	D LB7 + IR LB4
> 315 – 385	DIR LB6
560 – 580	DIR LB1
> 580 – 595	DIR LB2
> 595 – 605	DIR LB3
> 605 – 615	DIR LB4
> 615 – 640	DIR LB5
> 640 – 660	DIR LB6
> 660 – 705	D LB6 + IR LB7
> 705 – 710	DIR LB6
> 710 – 715	DIR LB5
> 715 – 720	DIR LB4
> 720 – 730	DIR LB3
> 730 – 770	DIR LB2
> 770 – 820	DIR LB1

Filter #0158

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
190 – 315	D LB7 + IR LB4
760 – 790	DIR LB2
> 790 – 805	DIR LB3
> 805 – 840	DIR LB4
> 840 – 860	DIR LB5
> 860 – 1030	DIR LB6
> 1030 – 1065	D LB6 + IR LB7
> 1065 – 1080	DIR LB5
> 1080 – 1100	DIR LB3

Filter #0149

Wavelength (in nm)	Protection levels acc. to EN207
	PF CE
180 – 315	D LB7 + IR LB3
> 315 – 532	DIR LB5 + M LB5Y

Filter #0145

Wavelength (in nm)	Protection levels acc. to EN207
	PF S CE
180 – 315	D LB5 + IR LB3
9000 – 11000	DI LB4

Laser Safety Eyewear ONTOR Filter #0247

000-K0247-ONTO-01

The Laser Safety Filter #0247 by PROTECT-Laserschutz is suitable in particular for diode laser (808nm) in healthcare, but covers additional wavelength as well. The laser safety filter consists of a pink polycarbonate, and offers an visual light transmission (VLT) of more than 60% and a minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN207.

Protection level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0247 is available in the following frames.

No data found!
