Laser Safety Filter #0244

000-K0244

The Laser Safety Filter #0244 by PROTECT-Laserschutz is suitable for UV and harmonic Nd:YAG laser (266nm, 355nm, 532nm, 1064nm) in particular, but the filter also covers additional laser wavelengths. In the medical sector this filter is the perfect choice, if using Q-switched laser for tattoo removal. The laser safety filter consists of an amber filter made of special plastics with a visual light transmission (VLT) of 10% and minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN207 and is available in different frames.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Specifications Filter

Order Information

All available frames

The Laser Safety Filter #0244 is available in the following frames.

No data found!

Laser Safety Filter #0240

000-G0240

The Laser Safety Filter #0240 by PROTECT-Laserschutz is suitable for powerful Nd:YAG laser (266nm, 355nm, 532nm, 1064 nm). The laser safety filter additionally covers further laser wavelength, like fibre laser (1030 nm) and disc laser (1080 nm). The laser safety filter consists of a amber mineral glass with an additional dielectric layer, and offers a visual light transmission (VLT) of approx. 29%. The laser safety filter is CE certified in accordance with the requirements of EN207.

Protection Level

Specifications Filter

Order Information

All available frames

The Laser Safety Filter #0240 is available in the following frames.

No data found!

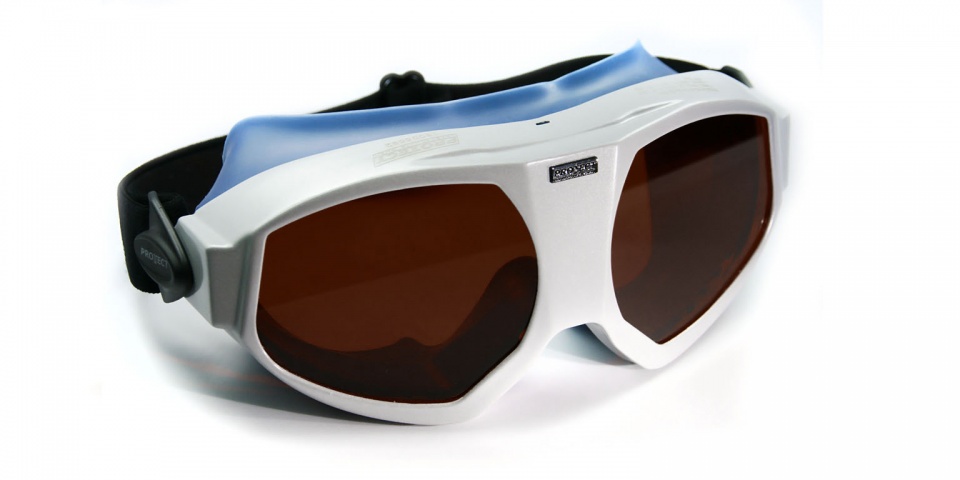

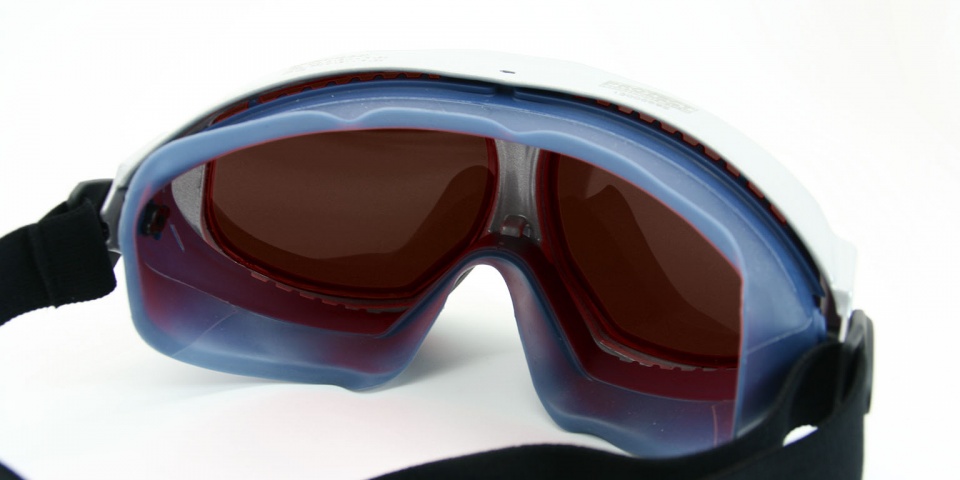

Laser Safety Eyewear GLADIATOR Filter #0240

000-G0240-GLAD-20

The Laser Safety Eyewear GLADIATOR are modern laser safety goggles made of a light aluminum alloy. Due to a soft face cover made of special rubber these goggles are all around airtight. The face cover is washable and easily exchangeable, if needed. Spacious air slots provide optimal air circulation and prevent fogging of the inside. The laser safety goggles are versatilely applicable and can be worn over prescription glasses or used as visitor goggles. An adjustable elastic head band offers perfect wearing comfort even during long working periods..

Der Laserschutzfilter #0240 von PROTECT-Laserschutz eignet sich insbesondere als Laserschutz bei Nd:YAG (266nm, 355nm, 532nm, 1064 nm)Laser. Zusätzlich werden aber auch weitere Laser, wie z.B. Diodenlaser (940nm), Scheibenlaser (1030nm) und Faserlaser (1080nm) vom Filter abgedeckt. Der Laserschutzfilter besteht aus einem bernsteinfarbenen Mineralglas mit einer zusätzlichen dielektrischen Schicht. Trotz der breitbandigen Abdeckung weist der Filter eine Tageslichttransmission von ca. 29% auf. Der Laserschutzfilter ist CE zertifiziert nach den Bestimmungen der DIN EN207.

Protection level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0240 is available in the following frames.

No data found!

Laser Safety Eyewear SPECTOR Filter #0240

000-G0240-SPEC-20

The Laser Safety Eyewear SPECTOR is a multifunctional laser safety goggles made of a lightweight aluminum alloy. The laser safety goggles are tightly sealed thanks to a soft, padded face support. Generous ventilation ducts prevent fogging of the interior. The glasses can be used in many ways as over-glasses for wearers of prescription glasses, or as visitor glasses .Thanks to an elastic, adjustable headband, they also offer optimum wearing comfort, even during long work periods.

Protection Level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0240 is available in the following frames.

No data found!

Previous 1 … 15 16 17 18 19 … 24 Next

Wavelength (in nm)	Protection levels according to EN207
180 – 315	D LB10 + IR LB5 + M LB6Y
> 315 – 532	D LB6 + IR LB8 + M LB7Y
> 532 – 534	DIRM LB6
535	DIRM LB5
> 535 – 538	DIRM LB4
> 538 – 544	DIRM LB3
> 544 – 546	DIRM LB2
> 546 – 554	DIRM LB1
647 – 691	DIRM LB1
> 691 – 721	DIRM LB2
> 721 – 744	DIRM LB3
> 744 – 765	DIRM LB4
> 765 – 786	DIRM LB5
> 786 – <800	DIRM LB6
800 – 1068	D LB6 + IR LB7 + M LB6
> 900 – 1020	D LB6 + IR LB8 + M LB7Y
> 1020 – 1068	D LB6 + IR LB9 + M LB7Y
> 1068 – 1106	DIRM LB6
> 1106 – 1114	DIRM LB5
> 1114 – 1124	DIRM LB4
> 1124 – 1137	DIRM LB3
> 1137 – 1153	DIRM LB2
> 1153 – 1184	DIRM LB1
9000 – 11000	DI LB3
	PF CE

Wavelength (in nm)	Protection levels according to EN207
180 – 315	D LB10 + IR LB5
> 315 – 532	D LB7 + IR LB8 + M LB8Y
800 – 820	DIR LB2
> 820 – 840	DIR LB3
> 840 – 860	DIR LB4
> 860 – 900	DIR LB7
> 900 – 1100	DR LB8 + I LB9 + M LB9Y
>1100 – 1400	D LB7 + IR LB8 + M LB8Y
>1400 – 3000	DIR LB4
>4000 – 9000	DIR LB4
9000 – 11000	DI LB5 + R LB4
	PF CE

Wellenlänge (in nm)	Schutzstufen nach DIN EN207
180 – 315	D LB10 + IR LB5
> 315 – 532	D LB7 + IR LB8 + M LB8Y
800 – 820	DIR LB2
> 820 – 840	DIR LB3
> 840 – 860	DIR LB4
> 860 – 900	DIR LB7
> 900 – 1100	DR LB8 + I LB9 + M LB9Y
>1100 – 1400	D LB7 + IR LB8 + M LB8Y
>1400 – 3000	DIR LB4
9000 – 11000	DI LB5 + R LB4
	PF CE

Wavelength (in nm)	Protection levels according to EN207
180 – 315	D LB10 + IR LB5
> 315 – 532	D LB7 + IR LB8 + M LB8Y
800 – 820	DIR LB2
> 820 – 840	DIR LB3
> 840 – 860	DIR LB4
> 860 – 900	DIR LB7
> 900 – 1100	DR LB8 + I LB9 + M LB9Y
>1100 – 1400	D LB7 + IR LB8 + M LB8Y
>1400 – 3000	DI LB4
>4000 – 9000	DI LB4
9000 – 11000	DI LB5
	PF CE
