Laser Safety Eyewear RONDOR Filter #0244

000-K0244-ROND-01

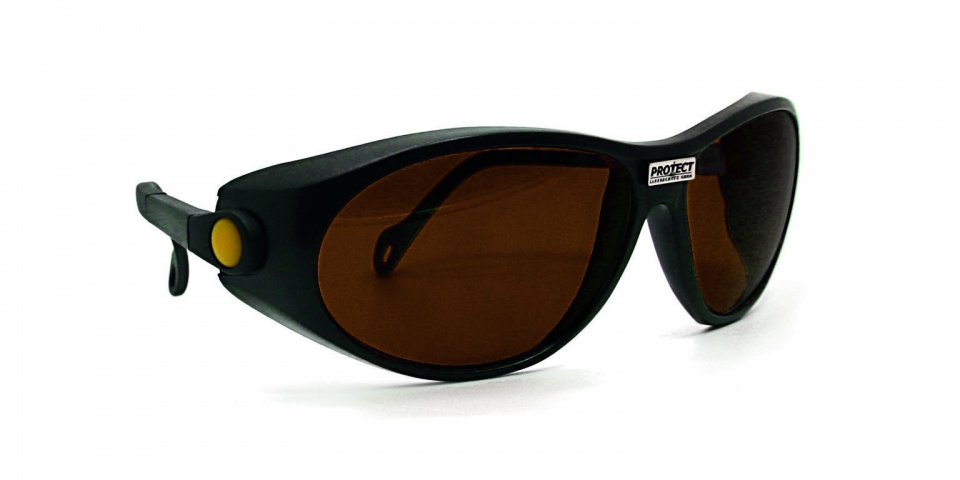

The Laser Safety Eyewear RONDOR are light and sporty laser safety spectacles made of special plastics. This featherweight frame offers extensive lateral protection and a large field of vision. The temples are individually adjustable by the user in length and inclination. The frame is available in two different colors (black or grey).

The Laser Safety Filter #0244 by PROTECT-Laserschutz is suitable for UV and harmonic Nd:YAG laser (266nm, 355nm, 532nm, 1064nm) in particular, but the filter also covers additional laser wavelengths. In the medical sector this filter is the perfect choice, if using Q-switched laser for tattoo removal. The laser safety filter consists of an amber filter made of special plastics with a visual light transmission (VLT) of 10% and minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207 and is available in different frames.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0244 is available in the following frames.

Wavelength (in nm)	Protection levels acc. to EN 207
180 - 315	D LB8 + IR LB4 (OD 8+)
> 315 - 532	D LB6 + IR LB7 (OD 7+)
> 532 - 534	DIR LB6 (OD 6+)
535	DIR LB5 (OD 5+)
> 535 - 538	DIR LB4 (OD 4+)
> 538 - 544	DIR LB3 (OD 3+)
> 544 - 546	DIR LB2 (OD 2+)
> 546 - 554	DIR LB1 (OD 1+)
647 - 691	DIR LB1 (OD 1+)
> 691 - 721	DIR LB2 (OD 2+)
> 721 - 744	DIR LB3 (OD 3+)
> 744 - 765	DIR LB4 (OD 4+)
> 765 - 786	DIR LB5 (OD 5+)
> 786 - <800	DIR LB6 (OD 6+)
800 - 1068	D LB6 + IR LB7 (OD 7+)
> 1068 - 1106	DIR LB6 (OD 6+)
> 1106 - 1114	DIR LB5 (OD 5+)
> 1114 - 1124	DIR LB4 (OD 4+)
> 1124 - 1137	DIR LB3 (OD 3+)
> 1137 - 1153	DIR LB2 (OD 2+)
> 1153 - 1184	DIR LB1 (OD 1+)
9000 - 11000	DI LB3 (OD 3+)
	PF CE

Laser Safety Eyewear RONDOR Filter #0244

All available frames

Laser Safety Eyewear RONDOR (Filter #0244)

Laser Safety Eyewear OVERCOR (Filter #0244)

Laser Safety Eyewear CONVEX (Filter #0244)

Laser Safety Eyewear COMBOR (Filter #0244)
