Laser Safety Eyewear CONVEX Filter #0244

000-K0244-CONV-01

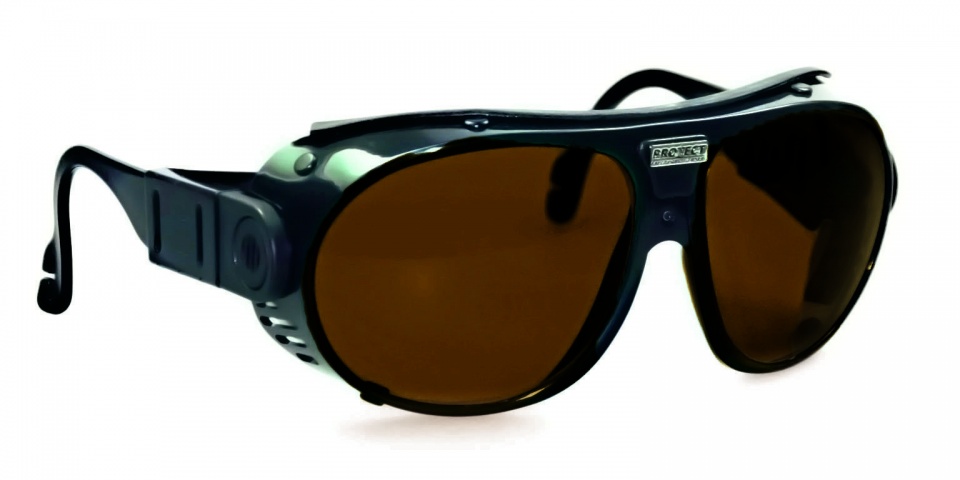

The Laser Safety Eyewear CONVEX are light laser safety spectacles made of special plastics. Due to a large wraparound design this eyewears offers a large field of vision. If needed the frame can be enforced by metal inlays for highest possible protection levels. The frame can easily be adjusted in temple length and inclination to fit each user.

The Laser Safety Filter #0244 by PROTECT-Laserschutz is suitable for UV and harmonic Nd:YAG laser (266nm, 355nm, 532nm, 1064nm) in particular, but the filter also covers additional laser wavelengths. In the medical sector this filter is the perfect choice, if using Q-switched laser for tattoo removal. The laser safety filter consists of an amber filter made of special plastics with a visual light transmission (VLT) of 10% and minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207 and is available in different frames.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0244 is available in the following frames.

Wavelength (in nm)	Protection levels acc. to EN 207
180 - 315	D LB9 + IR LB4 (OD 9+)
> 315 - 534	D LB5 + IR LB6 + M LB5 (OD 6+)
535	DIRM LB5 (OD 5+)
> 535 - 538	DIRM LB4 (OD 4+)
> 538 - 544	DIRM LB3 (OD 3+)
> 544 - 546	DIRM LB2 (OD 2+)
> 546 - 554	DIRM LB1 (OD 1+)
647 - 691	DIRM LB1 (OD 1+)
> 691 - 721	DIRM LB2 (OD 2+)
> 721 - 744	DIRM LB3 (OD 3+)
> 744 - 765	DIRM LB4 (OD 4+)
> 765 - 786	DIRM LB5 (OD 5+)
> 786 - <800	D LB5 + IRM LB6 (OD 6+)
800 - <900	D LB6 + IR LB7 + M LB6 (OD 7+)
900 - 950	D LB6 + IR LB7 + M LB7Y (OD 7+)
> 950 - 1020	D LB6 + IR LB7 + M LB6Y (OD 7+)
> 1020 - 1068	D LB6 + IR LB7 + M LB6 (OD 7+)
> 1068 - 1106	DIRM LB6 (OD 6+)
> 1106 - 1114	DIRM LB5 (OD 5+)
> 1114 - 1124	DIRM LB4 (OD 4+)
> 1124 - 1137	DIRM LB3 (OD 3+)
> 1137 - 1153	DIRM LB2 (OD 2+)
> 1153 - 1184	DIRM LB1 (OD 1+)
	PF CE

Laser Safety Eyewear CONVEX Filter #0244

All available frames

Laser Safety Eyewear RONDOR (Filter #0244)

Laser Safety Eyewear OVERCOR (Filter #0244)

Laser Safety Eyewear CONVEX (Filter #0244)

Laser Safety Eyewear COMBOR (Filter #0244)
