Laser Safety Filter #0235

000-K0235

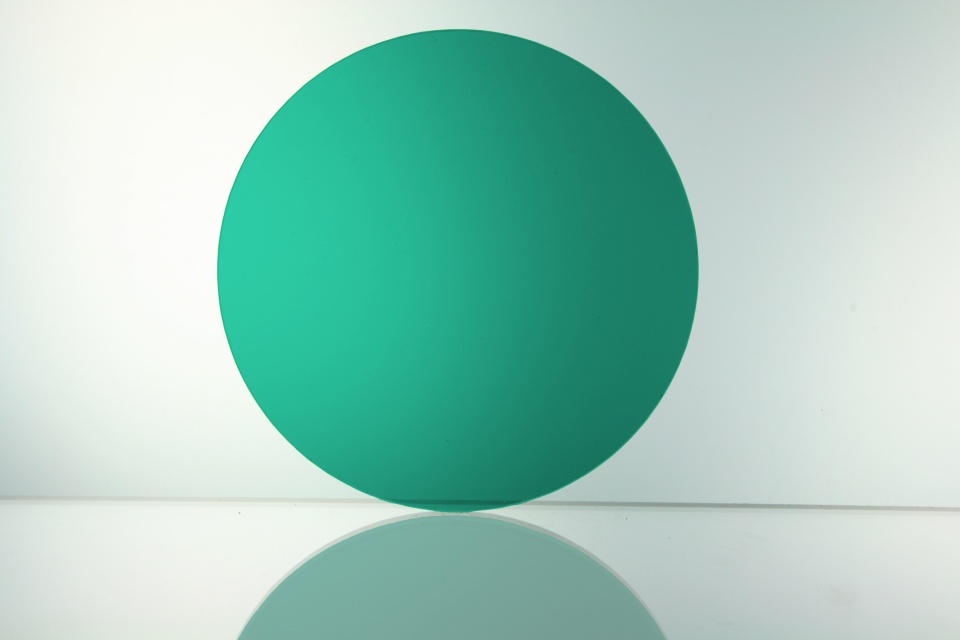

The Laser Safety Filter #0235 by PROTECT-Laserschutz is suitable for laser in the visible range of light in particular, this includes Dye (595nm), HeNe (633nm) and Ruby (694nm) laser. But the filter also covers additional laser wavelengths, like UV and Excimer laser. The laser safety filter consists of an emerald filter made of polycarbonate, and offers an visual light transmission (VLT) of 20% and a minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207 and is available in different frames.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Specifications Filter

Order Information

All available frames

The Laser Safety Filter #0235 is available in the following frames.

Wavelength (in nm)	Protection levels acc. to EN 207
180 – 315	D LB7 + IR LB4 (OD 7+)
> 315 – 385	DIR LB6 (OD 6+)
560 – 580	DIR LB1 (OD 1+)
> 580 – 595	DIR LB2 (OD 2+)
> 595 – 605	DIR LB3 (OD 3+)
> 605 – 615	DIR LB4 (OD 4+)
> 615 – 640	DIR LB5 (OD 5+)
> 640 – 660	DIR LB6 (OD 6+)
> 660 – 705	D LB6 + IR LB7 (OD 7+)
> 705 – 710	DIR LB6 (OD 6+)
> 710 – 715	DIR LB5 (OD 5+)
> 715 – 720	DIR LB4 (OD 4+)
> 720 – 730	DIR LB3 (OD 3+)
> 730 – 770	DIR LB2 (OD 2+)
> 770 – 820	DIR LB1 (OD 1+)
	PF CE

Laser Safety Filter #0235

All available frames

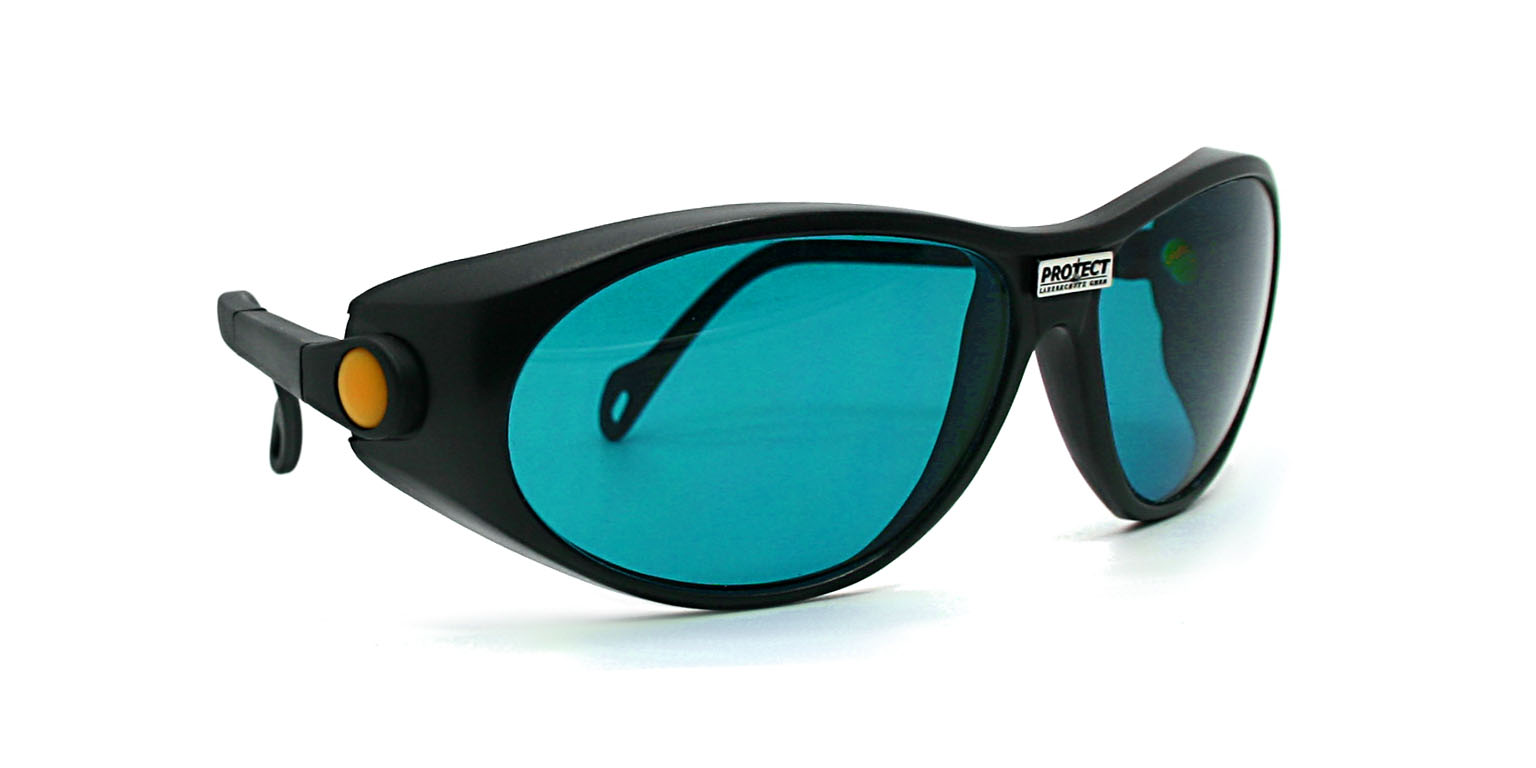

Laser Safety Eyewear RONDOR (Filter #0235)

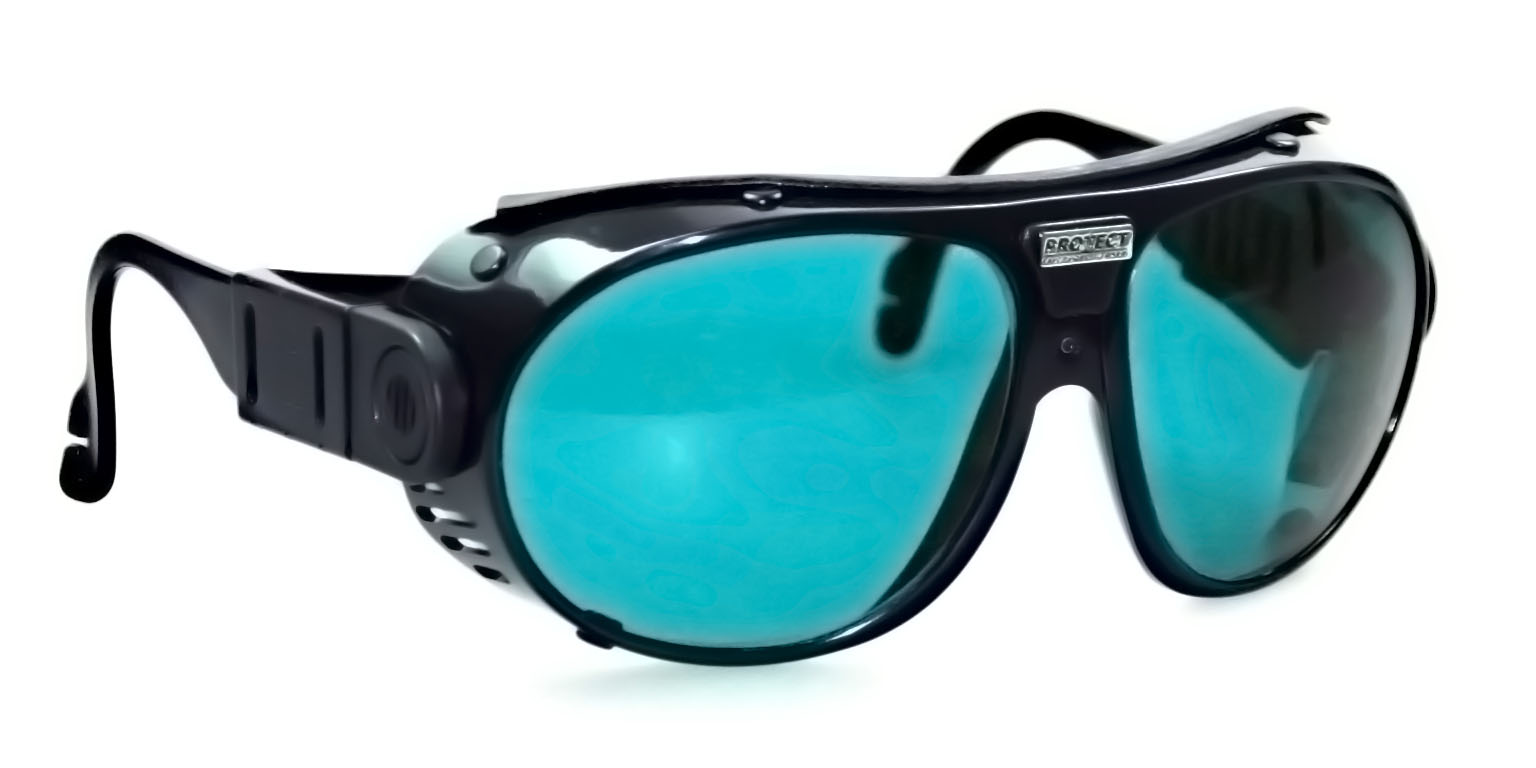

Laser Safety Eyewear CONVEX (Filter #0235)

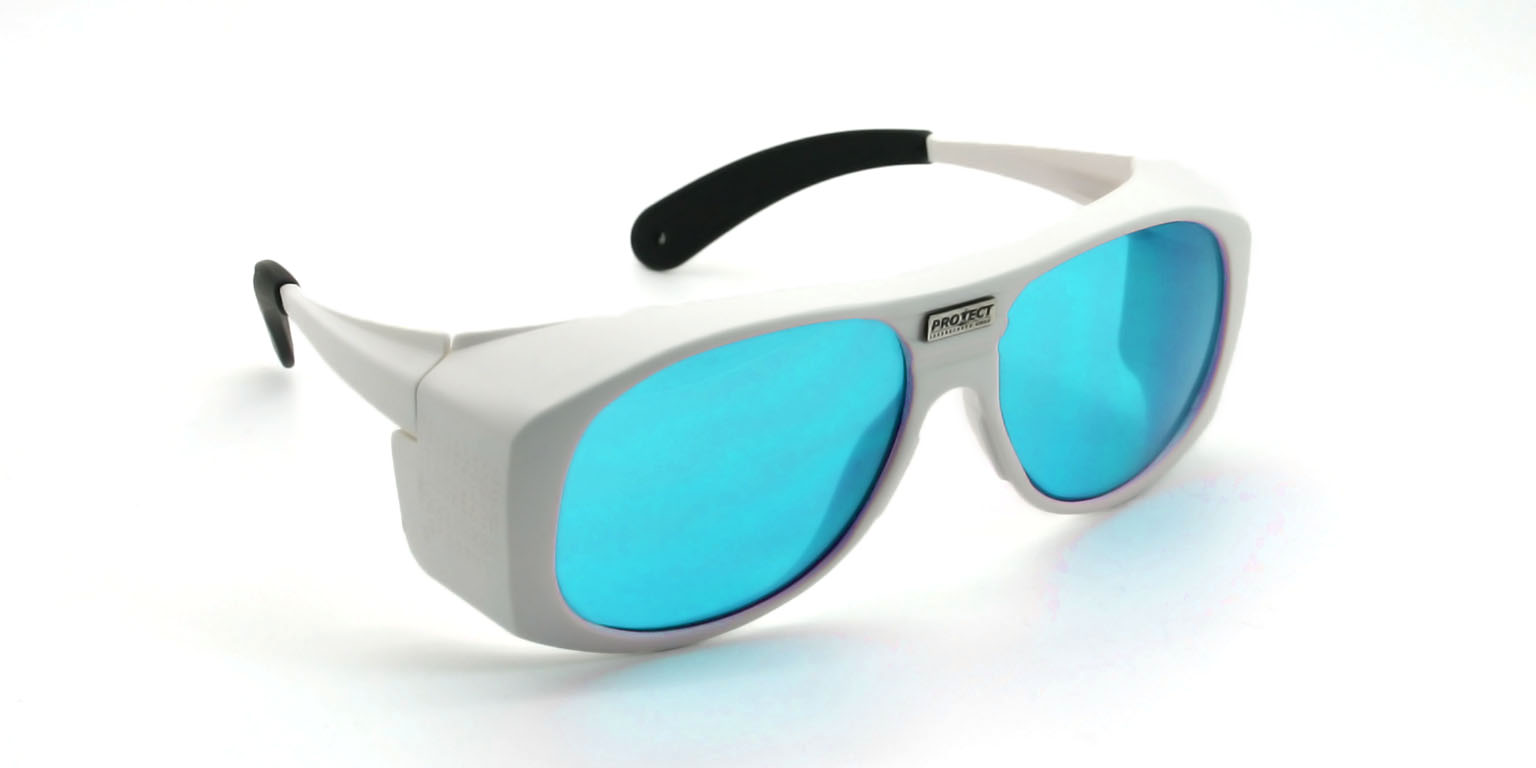

Laser Safety Eyewear OVERCOR (Filter #0235)

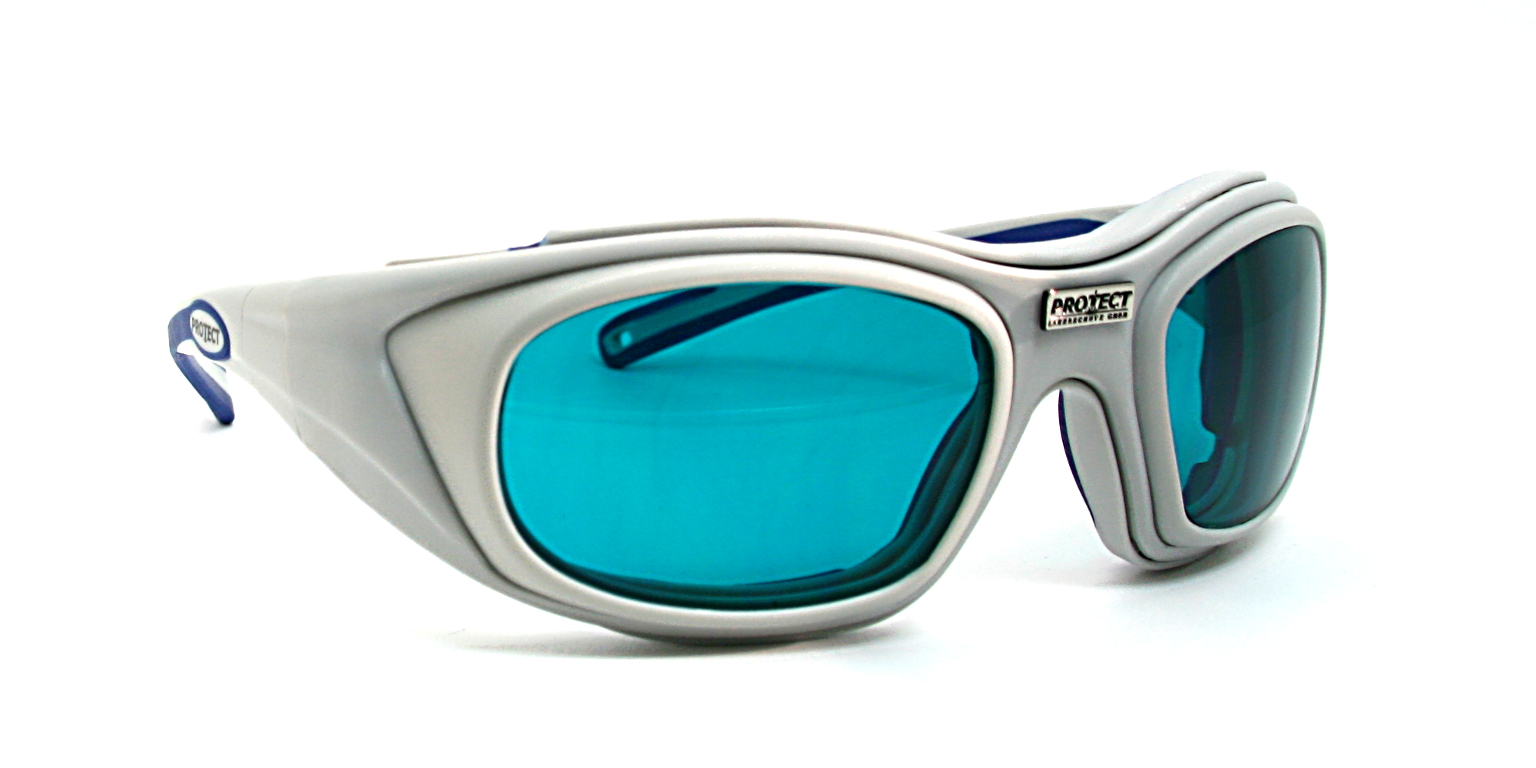

Laser Safety Eyewear COMBOR (Filter #0235)
