Laser Safety Eyewear GLADIATOR Filter #0206

000-K0206-GLAD-20

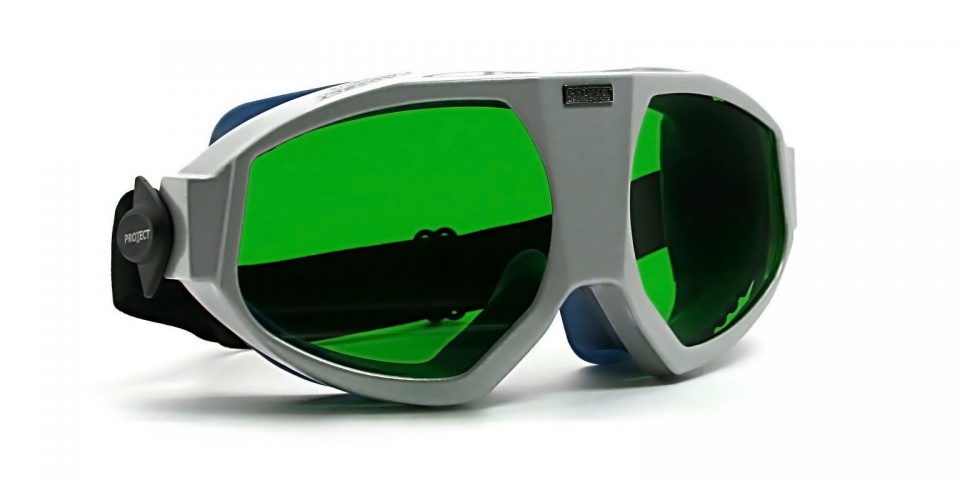

The Laser Safety Eyewear GLADIATOR are modern laser safety goggles made of a light aluminum alloy. Due to a soft face cover made of special rubber these goggles are all around airtight. The face cover is washable and easily exchangeable, if needed. Spacious air slots provide optimal air circulation and prevent fogging of the inside. The laser safety goggles are versatilely applicable and can be worn over prescription glasses or used as visitor goggles. An adjustable elastic head band offers perfect wearing comfort even during long working periods..

The Laser Safety Filter #0206 by PROTECT-Laserschutz is suitable for disc laser (1030 nm), Nd:YAG laser (1064 nm) and fibre laser (1080 nm) in particular, but the filter also covers additional laser wavelengths. The laser safety filter consists of green special plastics, and offers a visual light transmission (VLT) of appr. 20%. The laser safety filter is CE certified in accordance with the requirements of EN 207 and is available in different frames.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0206 is available in the following frames.

Wavelength (in nm)	Protection levels acc. to EN 207
315 - 450	D LB5 + IR LB6 (OD 6+)
>450 - 465	DIR LB5 (OD 5+)
>465 - 475	DIR LB4 (OD 4+)
>475 - 480	DIR LB3 (OD 3+)
>480 - 490	DIR LB2 (OD 2+)
>490 - 500	DIR LB1 (OD 1+)
620 - 720	DIR LB1 (OD 1+)
>720 - 760	DIR LB2 (OD 2+)
>760 - 795	DIR LB3 (OD 3+)
>795 - 820	DIR LB4 (OD 4+)
>820 - 840	DIR LB5 (OD 5+)
>840 - 860	DIR LB6 (OD 6+)
>860 - 900	D LB6 + IR LB7 (OD 7+)
>900 - 1100	D LB6 + IR LB8 (OD 8+)
>1100 - 1125	D LB6 + IR LB7 (OD 7+)
>1125 - 1165	DIR LB6 (OD 6+)
>1165 - 1400	DIR LB5 (OD 5+)
>1400 - 1800	DI LB3 (OD 3+)
2250 - 2450	DI LB3 (OD 3+)
2750 - 3000	DI LB3 (OD 3+)
	PF CE

Laser Safety Eyewear GLADIATOR Filter #0206

All available frames

Laser Safety Eyewear GLADIATOR (Filter #0206)

Laser Safety Eyewear RETRO (Filter #0206)

Laser Safety Eyewear SPECTOR (Filter #0206)

Laser Safety Eyewear STARLIGHT EXTRA (Filter #0206)
