Laser Safety Eyewear SPECTOR Filter #0266

000-G0266-SPEC-xx

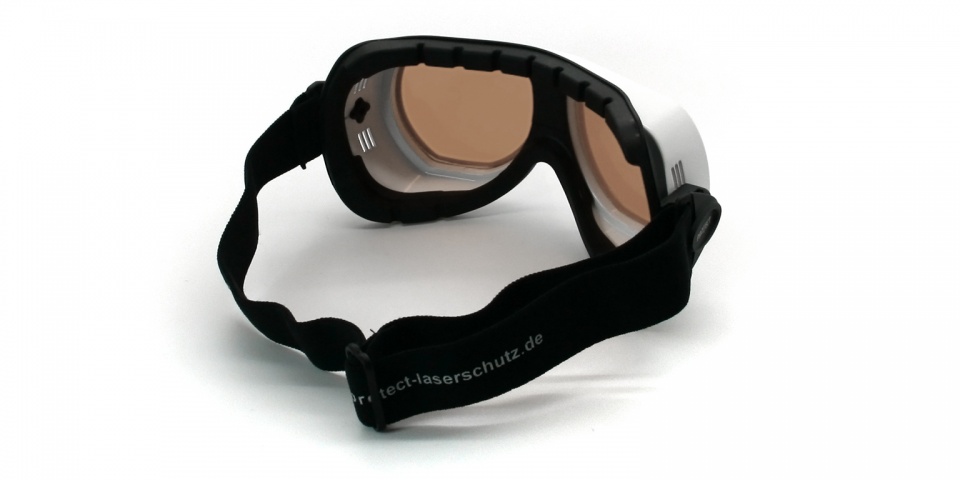

The Laser Safety Eyewear SPECTOR is a multifunctional laser safety goggles made of a lightweight aluminum alloy. The laser safety goggles are tightly sealed thanks to a soft, padded face support. Generous ventilation ducts prevent fogging of the interior. The glasses can be used in many ways as over-glasses for wearers of prescription glasses, or as visitor glasses .Thanks to an elastic, adjustable headband, they also offer optimum wearing comfort, even during long work periods.

The Laser Safety Filter #0266 by PROTECT-Laserschutz is suitable for powerful disc laser, Nd:YAG laser, fibre laser, Ruby, Er:YAG Laser and CO2 laser in particular, but the filter also covers additional laser wavelengths. The laser safety filter consists of a light grey, laminated mineral glass, and offers an extraordinary visual light transmission (VLT) of 15 % despite its filter thickness of 8 mm. The laser safety filter is CE certified in accordance with the requirements of EN 207.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0266 is available in the following frames.

Wavelength (in nm)	Protection levels acc. to EN 207
180 - 315	D LB10 + IR LB5 (OD 10+)
>315 - 532	D LB7 + IRM LB8 (OD 8+)
>532 - 550	DIRM LB5 (OD 5+)
>550 - 553	DIRM LB4 (OD 4+)
>553 - 556	DIRM LB3 (OD 3+)
>556 - 560	DIRM LB2 (OD 2+)
>560 - 565	DIRM LB1 (OD 1+)
615 - 647	DIRM LB1 (OD 1+)
>647 - 672	DIRM LB2 (OD 2+)
>672 - 693	DIRM LB3 (OD 3+)
>693 - 711	DIRM LB4 (OD 4+)
>711 - 731	DIRM LB5 (OD 5+)
>731 - 752	DIRM LB6 (OD 6+)
>752 - 772	DIRM LB7 (OD 7+)
>772 - 794	DIRM LB8 (OD 8+)
>794 - 1168	D LB8 + IR LB9 + M LB9Y (OD 9+)
>1168 - 1180	DIRM LB8 (OD 8+)
>1180 - 1195	DIRM LB7 (OD 7+)
>1195 - 1218	DIRM LB6 (OD 6+)
>1218 - 1270	DIRM LB5 (OD 5+)
>1270 - 1326	DIRM LB4 (OD 4+)
>1326 - 1400	DIRM LB3 (OD 3+)
2850 - 9000	DI LB4 + R LB3Y (OD 4+)
>9000 - 11000	DI LB5 (OD 5+)
	PF CE

Item #:	Frame Color:
000-G0266-SPEC-20	silver
000-G0266-SPEC-02	white
