Laser Safety Filter #0158

000-K0158

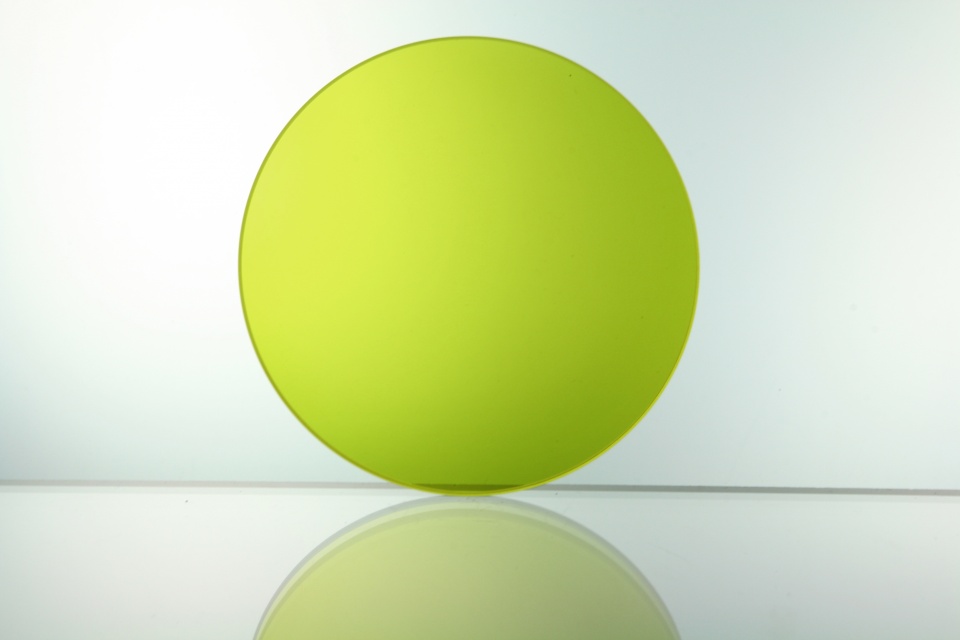

The Laser Safety Filter #0158 by PROTECT-Laserschutz is suitable for disc laser (1030 nm), Nd:YAG laser (1064 nm) and fibre laser (1080 nm) in particular, but the filter also covers additional laser wavelengths. The laser safety filter consists of green polycarbonate, and offers an extraordinary visual light transmission (VLT) of 63%. The laser safety filter is CE certified in accordance with the requirements of EN 207.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Specifications Filter

Order Information

All available frames

The Laser Safety Filter #0158 is available in the following frames.

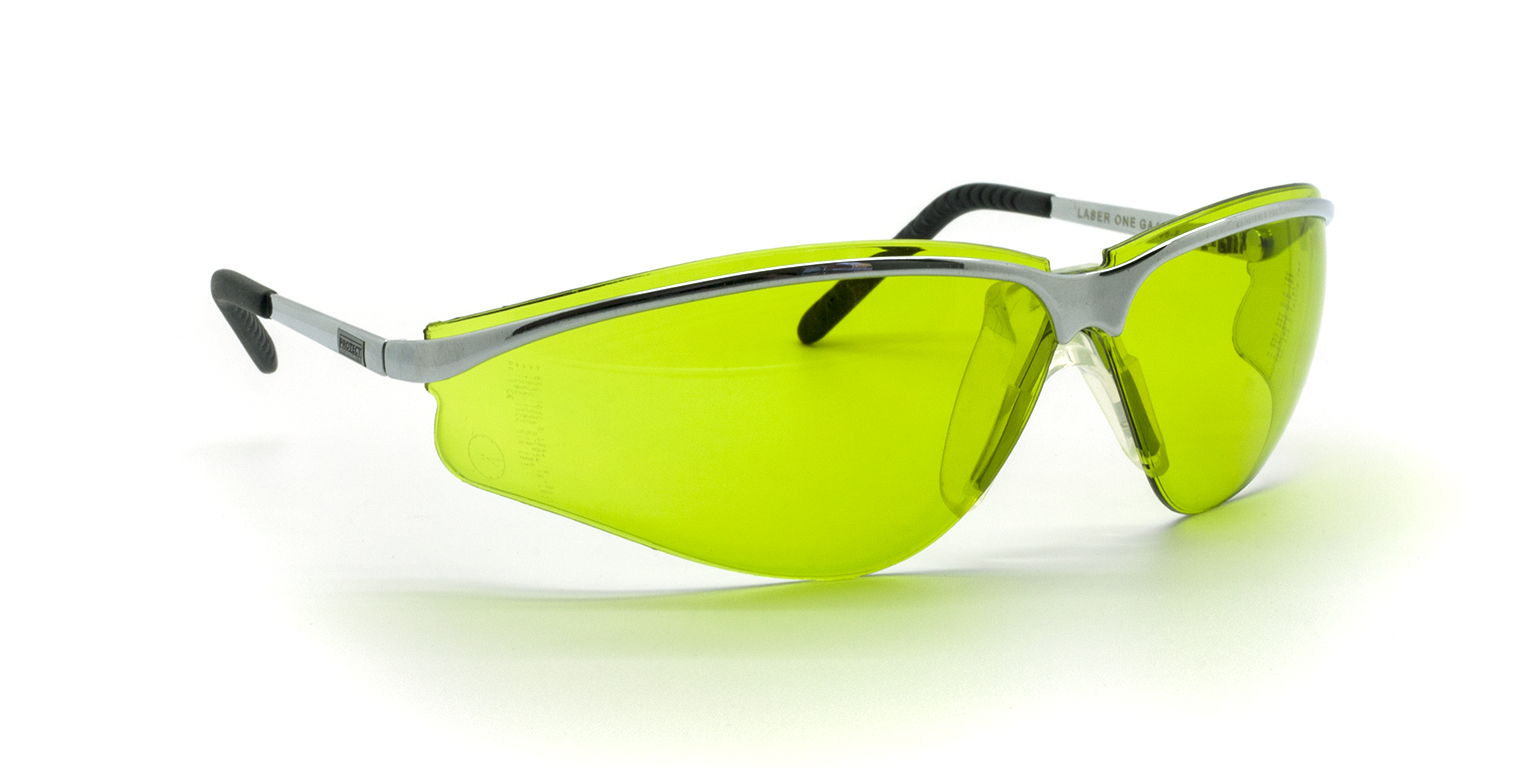

Laser Safety Eyewear STRATOR (Filter #0158)

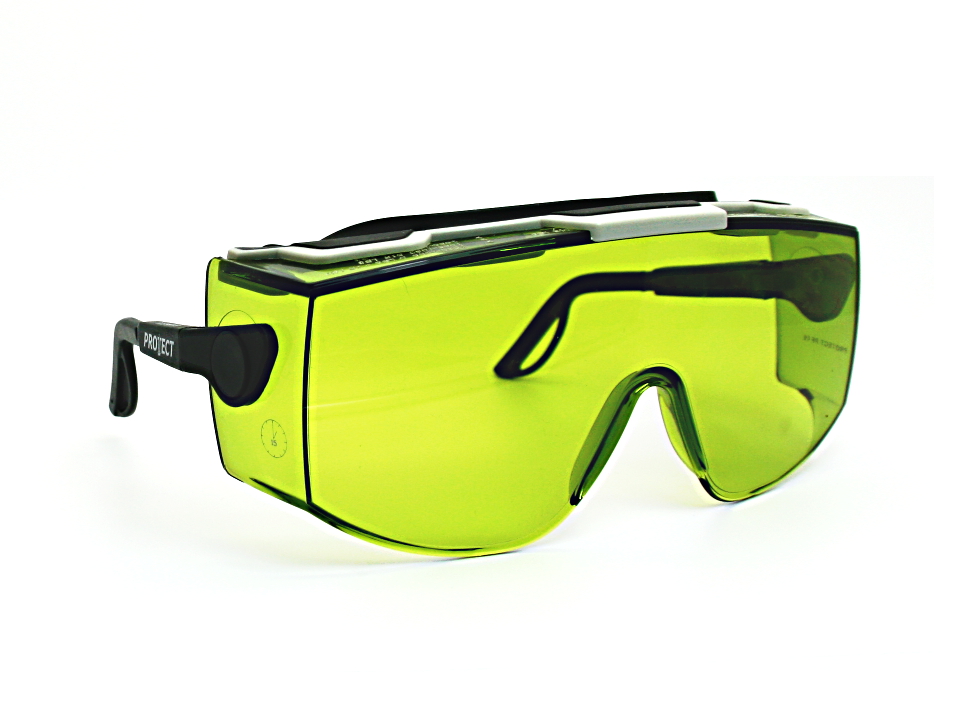

Laser Safety Eyewear ASTOR XL (Filter #0158)

Wavelength (in nm)	Protection levels acc. to EN 207
190 - 315	D LB7 + IR LB4 (OD 7+)
760 - 790	DIR LB2 (OD 2+)
> 790 - 810	DIR LB3 (OD 3+)
> 810 - 840	DIR LB4 (OD 4+)
> 840 - 860	DIR LB5 (OD 5+)
> 860 - 1030	DIR LB6 (OD 6+)
> 1030 - 1065	D LB6 + IR LB7 (OD 7+)
> 1065 - 1070	DIR LB5 (OD 5+)
> 1070 - 1095	DIR LB3 (OD 3+)
> 1095 - 1100	DIR LB2 (OD 2+)
