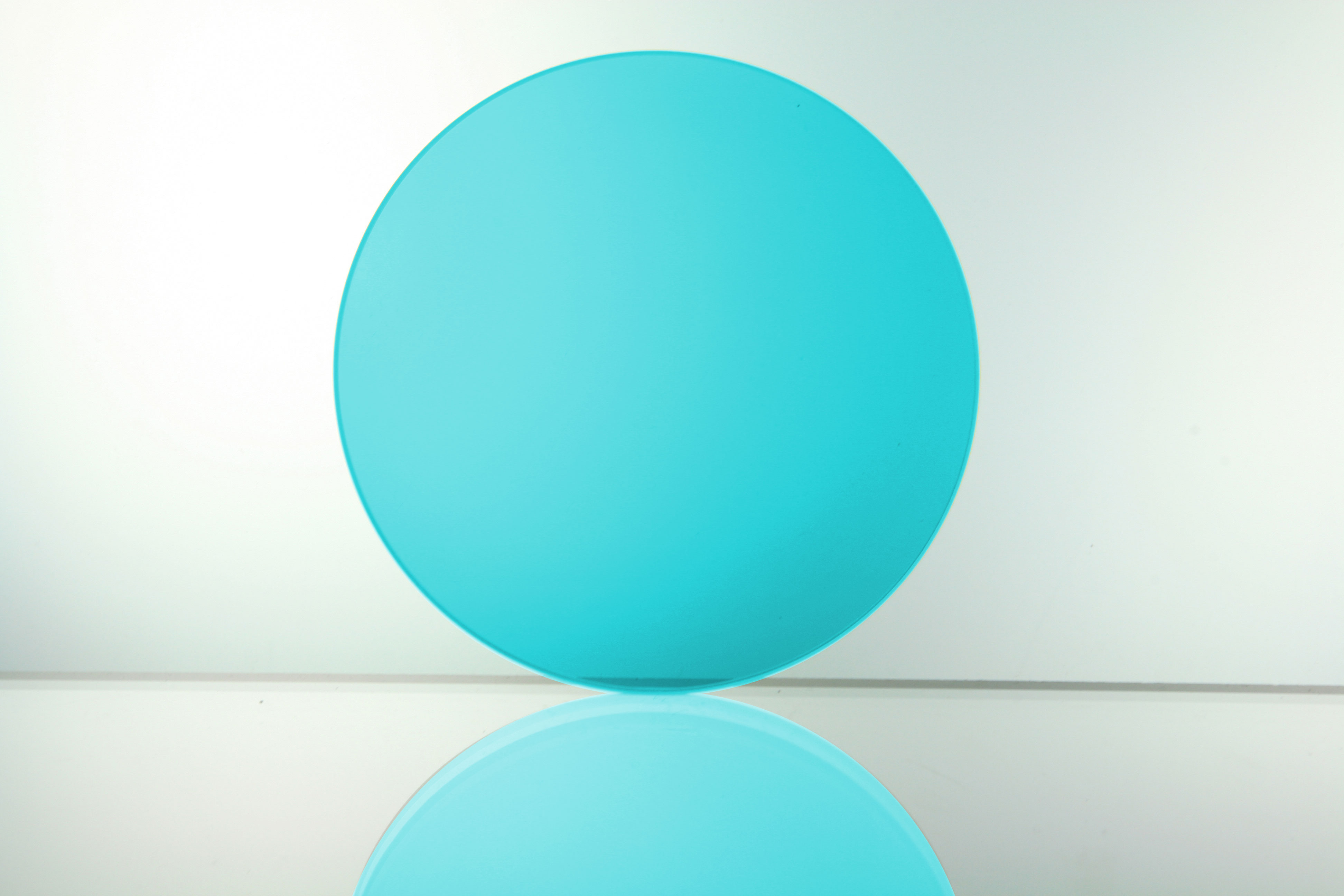

Laser Safety Filter #0384

000-K0384

The Laser Safety Filter #0384 by PROTECT-Laserschutz is suitable in particular for ruby laser, but covers additional wavelength as well. The laser safety filter consists of a clear polycarbonate, and offers an visual light transmission (VLT) of approx 62 % and a minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Specifications Filter

Order Information

All available frames

The Laser Safety Filter #0384 is available in the following frames.

Laser Safety Filter #0384

Wavelength (in nm)	Protection levels acc. to EN 207
620 - 670	DIR LB1 (OD 1+)
>670 - 683	DIR LB2 (OD 2+)
>683 - 687	DIR LB3 (OD 3+)
>687 - 693	DIR LB4 (OD 4+)
>693 - 705	D LB5 + IR LB7 (OD 7+)
>705 - 708	D LB5 + IR LB6 (OD 6+)
>708 - 715	DIR LB4 (OD 4+)
>715 - 720	DIR LB2 (OD 2+)
>720 - 730	DIR LB1 (OD 1+)
	PF CE
