Laser Safety Eyewear ONTOR Filter #0342

000-K0342-ONTO

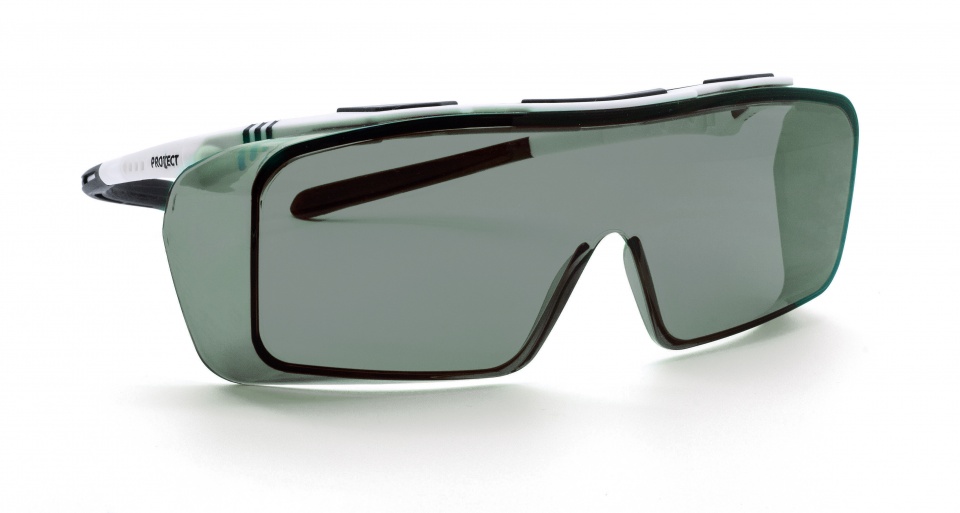

The Laser Safety Eyewear ONTOR are lightweight laser safety goggles made of special plastics, as perfect solution to wear over prescription glasses. This frame offers a large field of vision, and lateral impact protection. The temples can be adjusted individually in length and inclination, and soft and rubberized face foam improves the wearing comfort.

The Laser Safety Filter #0342 by PROTECT-Laserschutz is suitable in particular for Excimer, UV, Tm:diode, Er:glass, Telecom, Thuliium, Ho:YAG, Er:YAG and CO2, but covers additional wavelength as well. The laser safety filter consists of a grey polycarbonate, and offers an visual light transmission (VLT) of 25 % and a minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0342 is available in the following frames.

Laser Safety Eyewear ONTOR (Filter #0342)

Wavelength (in nm)	Protection levels acc. to EN 207
180 - 315	D LB10 + IR LB5 + M LB6Y (OD 10+)
800 - 1000	DIR LB1 (OD 1+)
>1000 - 1300	DIR LB2 (OD 2+)
>1300 - 1400	DIR LB3 (OD 3+)
>1400 - 1430	DIR LB3 + M LB3Y (OD 3+)
>1430 - 1530	DI LB4 + R LB3Y + M LB4Y (OD 4+)
>1530 - 3000	DI LB4 + R LB3Y + M LB4Y (OD 4+)
>3000 - 11500	DI LB4 + R LB3Y + M LB4Y (OD 4+)
	PF CE

Item #:	Frame Color:
000-K0342-ONTO-52	black-grey
000-K0342-ONTO-54	black-white
