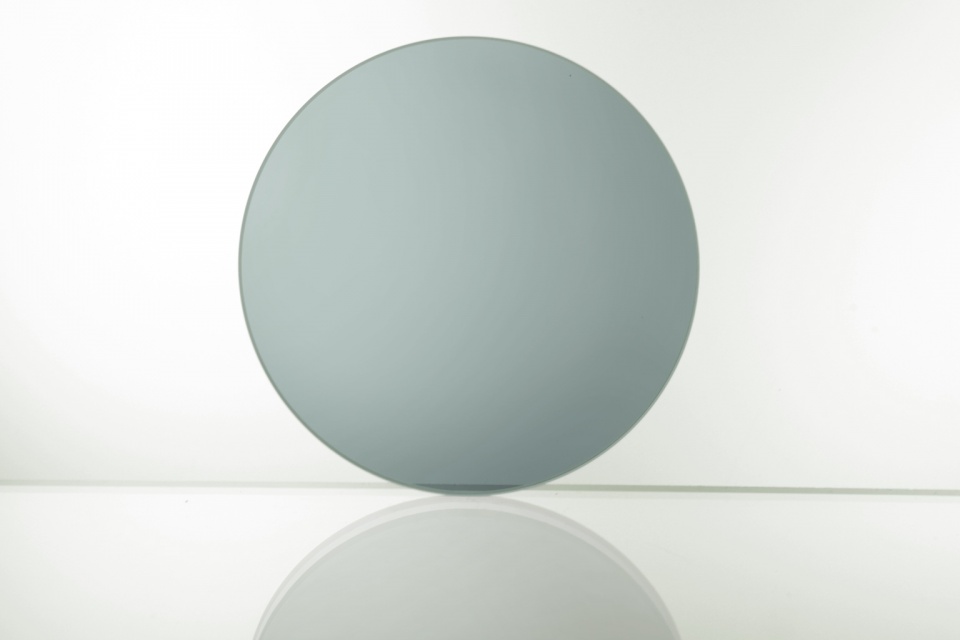

Laser Safety Filter #0342

000-K0342

The Laser Safety Filter #0342 by PROTECT-Laserschutz is suitable for powerful Excimer, UV, Tm:diode, Er:glass, Telecom, Thuliium, Ho:YAG, Er:YAG and CO2 in particular, but the filter also covers additional laser wavelengths. The laser safety filter consists of a grey special plastic and offers a visual light transmission (VLT) of 25 % and a minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Specifications Filter

Order Information

All available frames

The Laser Safety Filter #0342 is available in the following frames.

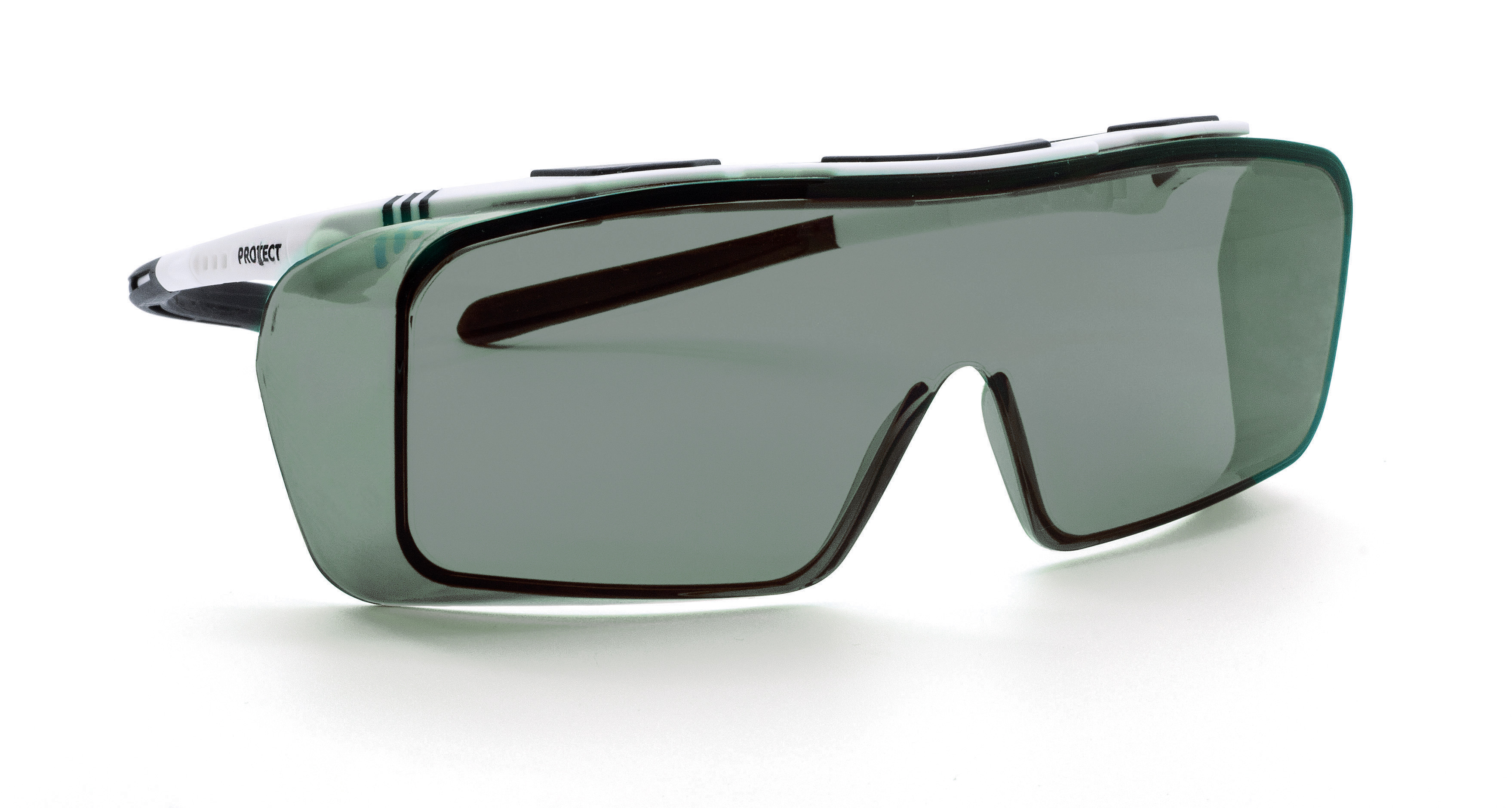

Laser Safety Eyewear ONTOR (Filter #0342)

Wavelength (in nm)	Protection levels acc. to EN 207
180 - 315	D LB10 + IR LB5 + M LB6Y (OD 10+)
800 - 1000	DIR LB1 (OD 1+)
>1000 - 1300	DIR LB2 (OD 2+)
>1300 - 1400	DIR LB3 (OD 3+)
>1400 - 1430	DIR LB3 + M LB3Y (OD 3+)
>1430 - 1530	DI LB4 + R LB3Y + M LB4Y (OD 4+)
>1530 - 3000	DI LB4 + R LB3Y + M LB4Y (OD 4+)
>3000 - 11500	DI LB4 + R LB3Y + M LB4Y (OD 4+)
	PF CE

Laser Safety Filter #0342

All available frames

Laser Safety Eyewear ONTOR (Filter #0342)
