Laser Safety Eyewear RETRO Filter #0358

000-K0358-RETR-21

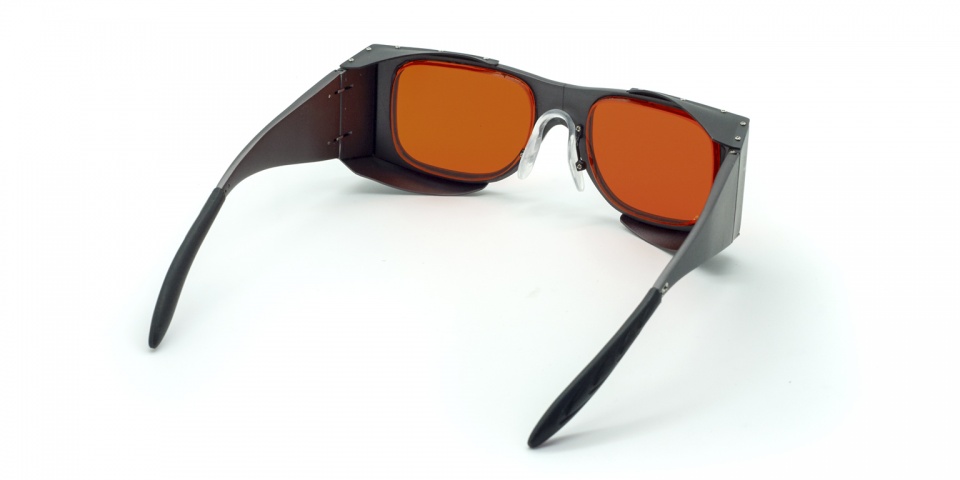

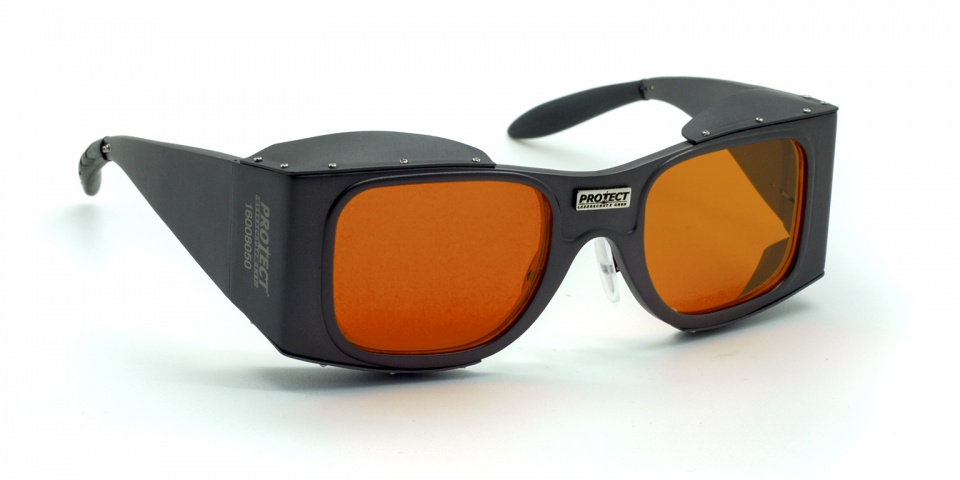

The Laser Safety Eyewear RETRO are modern laser safety spectacles made from a light aluminum alloy in an appealing titan-look. Due to an additional coverage of the upper and lower part of the eye, these laser safety spectacles offer perfect laser protection from all sides. Flexible temples assure a good wearing comfort even during long working periods.

The Laser Safety Filter #0358 by PROTECT-Laserschutz is suitable for many lasers in the UV-, and visible range of light, like Excimer (193nm), UV (248nm), harmonic Nd:YAG (266 nm + 355nm + 532nm) and Argon-Laser (515nm). But the filter covers also many laser wavelengths in the IR sector, like Ti:Saphir (800nm), disc laser (1030 nm), Nd:YAG (1064 nm) and fibre laser (1080 nm). The laser safety filter consists of brown special plastics and has an visual light transmission (VLT) of 28%. The laser safety filter is CE certified in accordance with the requirements of EN 207.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Wavelength (in nm)	Protection levels acc. to EN 207
	PF CE
180 - 315	D LB10 + IR LB4 (OD 10+)
> 315 - 534	D LB5 + IR LB8 + M LB8Y (OD 8+)
> 534 - 537	D LB5 + IRM LB6 (OD 6+)
> 537 - 545	DIRM LB3 (OD 3+)
> 545 - 552	DIRM LB2 (OD 2+)
> 552 - 562	DIRM LB1 (OD 1+)
690 - 766	DIRM LB1 (OD 1+)
> 766 - 815	DIRM LB2 (OD 2+)
> 815 - 844	DIRM LB3 (OD 3+)
> 845 - 865	DIRM LB4 (OD 4+)
> 865 - 880	DIRM LB5 (OD 5+)
> 880 - 905	DIRM LB6 (OD 6+)
> 905 - 939	D LB6 + IRM LB7 (OD 7+)
> 939 - 1000	D LB7 + IR LB8 + M LB8Y (OD 8+)
> 1000 - 1065	D LB7 + IR LB9 + M LB8Y (OD 9+)
> 1065 - 1100	D LB7 + IR LB8 + M LB8Y (OD 8+)
> 1100 - 1125	DIRM LB7 (OD 7+)
> 1125 - 1150	DIRM LB6 (OD 6+)
> 1150 - 1185	DIRM LB5 (OD 5+)
> 1185 - 1235	DIRM LB4 (OD 4+)
> 1235 - 1375	DIRM LB3 (OD 3+)
> 1375 - 1400	DIRM LB2 (OD 2+)
> 1400 - 1744	DI LB2 (OD 2+)
> 1744 - 1918	DI LB1 (OD 1+)

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0358 is available in the following frames.

Laser Safety Eyewear RETRO Filter #0358

All available frames

Laser Safety Eyewear RETRO (Filter #0358)

Laser Safety Eyewear GLADIATOR (Filter #0358)

Laser Safety Eyewear SPECTOR (Filter #0358)
