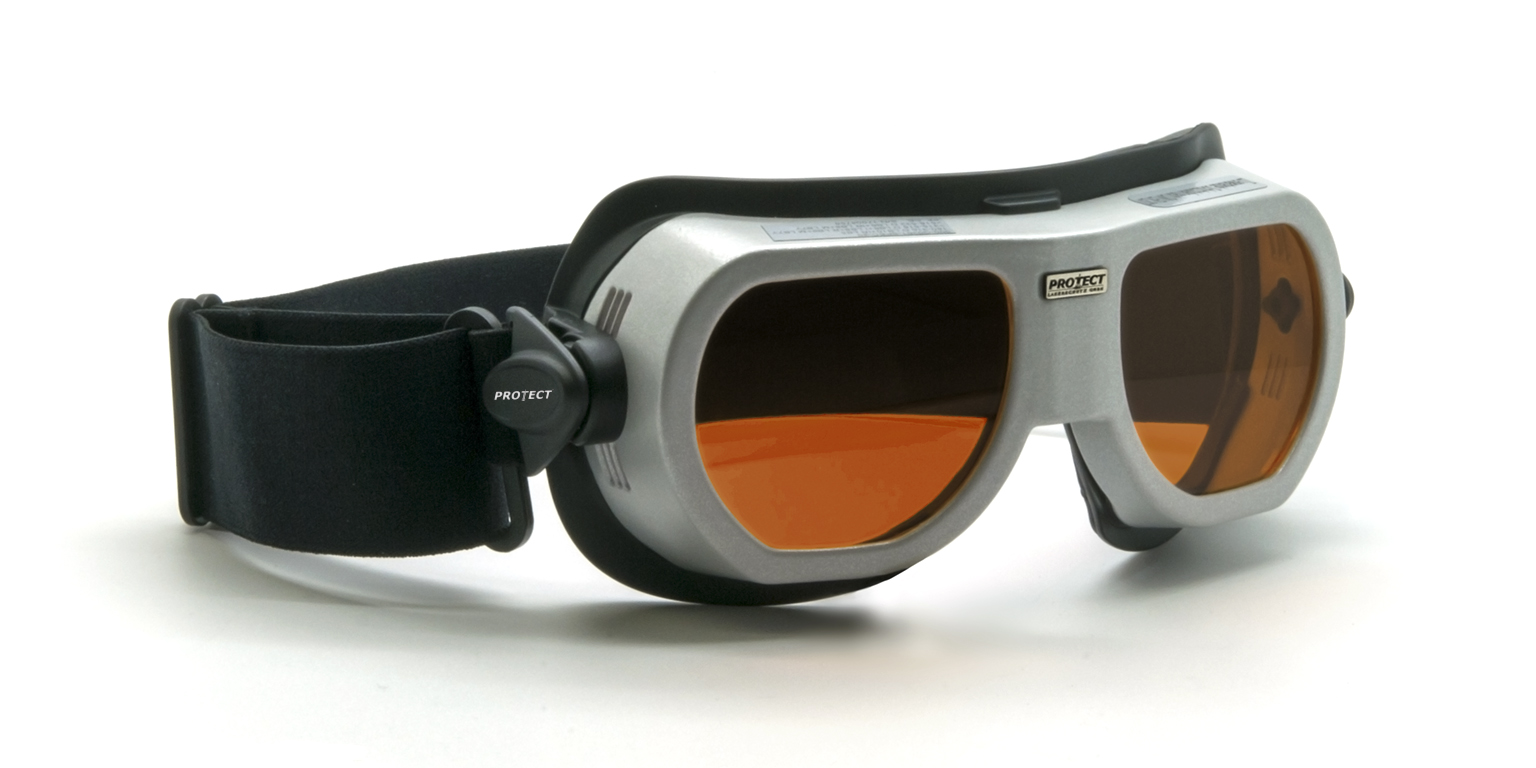

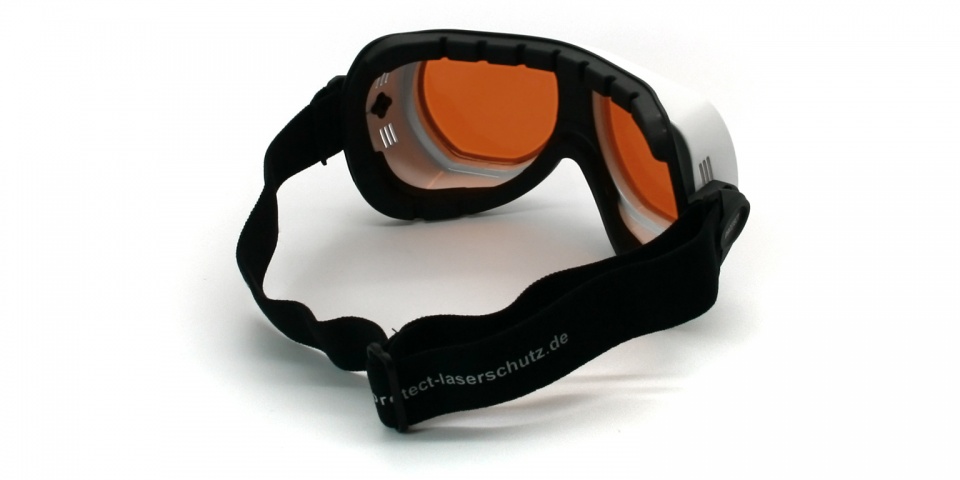

Laser Safety Eyewear SPECTOR Filter #0358

000-K0358-SPEC-xx

The Laser Safety Eyewear SPECTOR is a multifunctional laser safety goggles made of a lightweight aluminum alloy. The laser safety goggles are tightly sealed thanks to a soft, padded face support. Generous ventilation ducts prevent fogging of the interior. The glasses can be used in many ways as over-glasses for wearers of prescription glasses, or as visitor glasses .Thanks to an elastic, adjustable headband, they also offer optimum wearing comfort, even during long work periods.

The Laser Safety Filter #0358 by PROTECT-Laserschutz is suitable for powerful Excimerlaser (193 nm), UV-laser (248 nm), Argon-laser (515 nm), Diode laser, harmonic Nd:YAG (266 nm, 355 nm, 532 nm), Disk laser (1030 nm), Nd:YAG (1064 nm) laser, Fibre laser (1080 nm) and Telecom (1320 nm). The laser safety filter consists of a amber colored special plastic and offers a visual light transmission (VLT) of appr. 28% and a minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207 and is available in different frames.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Specifications Filter

Specifications Frame

Order Information

All available frames

The laser safety filter #0358 is available in the following frames.

Wavelenth (in nm)	Protection levels acc. to EN 207
> 180 - 315	D LB10 + IR LB4 + M LB6Y (OD 10+)
> 315 - 534	D LB5 + IRM LB8 (OD 8+)
> 534 - 537	D LB5 + IRM LB6 (OD 6+)
> 537 - 545	DIRM LB3 (OD 3+)
> 545 - 552	DIRM LB2 (OD 2+)
> 552 - 562	DIRM LB1 (OD 1+)
690 - 766	DIRM LB1 (OD 1+)
> 766 - 815	DIRM LB2 (OD 2+)
> 815 - 844	DIRM LB3 (OD 3+)
> 845 - 865	DIRM LB4 (OD 4+)
> 865 - 880	DIRM LB5 (OD 5+)
> 880 - 905	DIRM LB6 (OD 6+)
> 905 - 939	D LB6 + IRM LB7 (OD 7+)
> 939 - 1000	D LB7 + IR LB8 + M LB8Y (OD 8+)
> 1000 - 1065	D LB7 + IR LB9 + M LB8Y (OD 9+)
> 1065 - 1100	D LB7 + IR LB8 + M LB8Y (OD 8+)
> 1100 - 1125	DIRM LB7 (OD 7+)
> 1125 - 1150	DIRM LB6 (OD 6+)
> 1150 - 1185	DIRM LB5 (OD 5+)
> 1185 - 1235	DIRM LB4 (OD 4+)
> 1235 - 1375	DIRM LB3 (OD 3+)
> 1375 - 1744	DIRM LB2 (OD 2+)
> 1744 - 1918	DIRM LB1 (OD 1+)
	PF CE

Item #:	Frame Color:
000-K0358-SPEC-20	silver
000-K0358-SPEC-02	white

Laser Safety Eyewear SPECTOR Filter #0358

All available frames

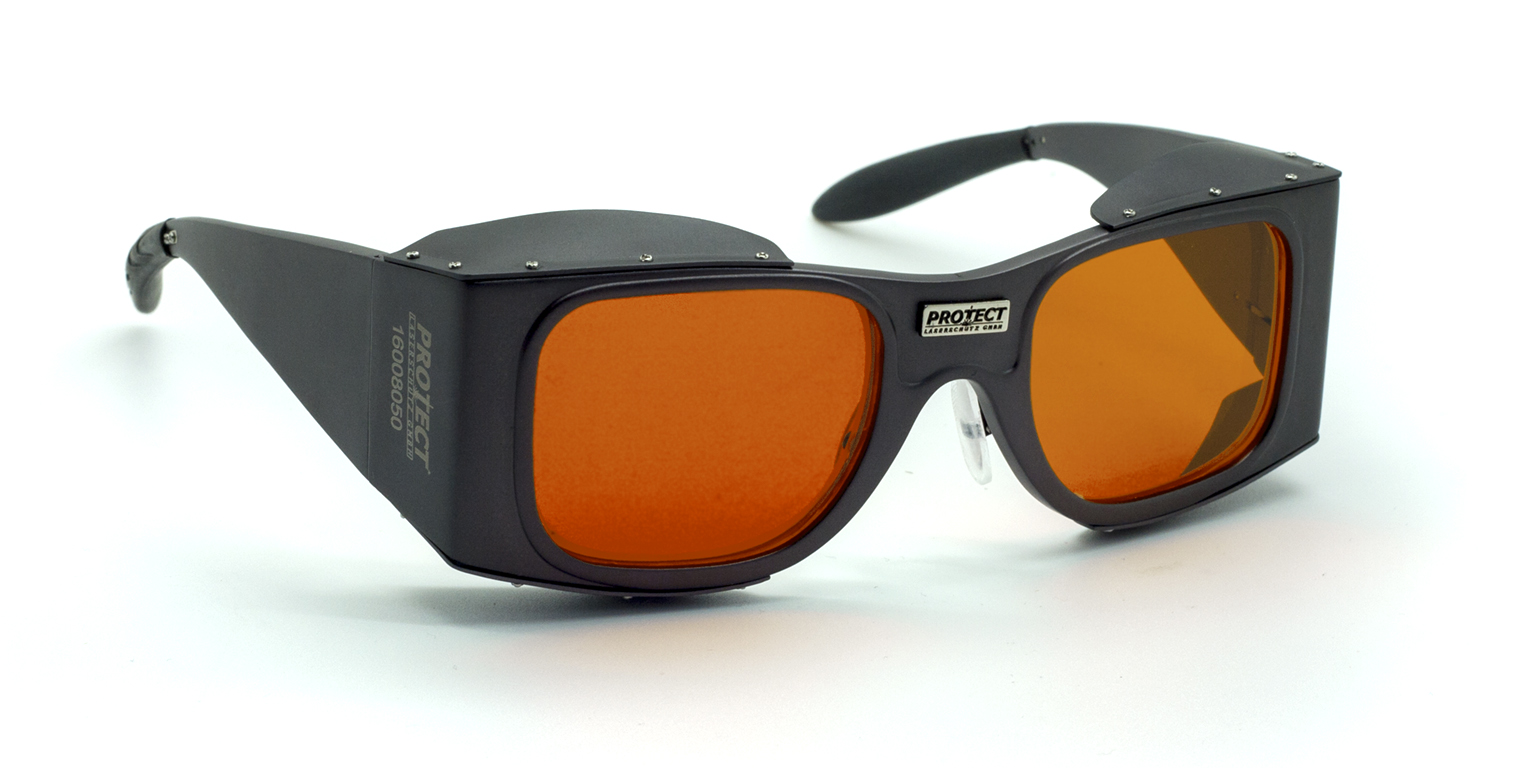

Laser Safety Eyewear RETRO (Filter #0358)

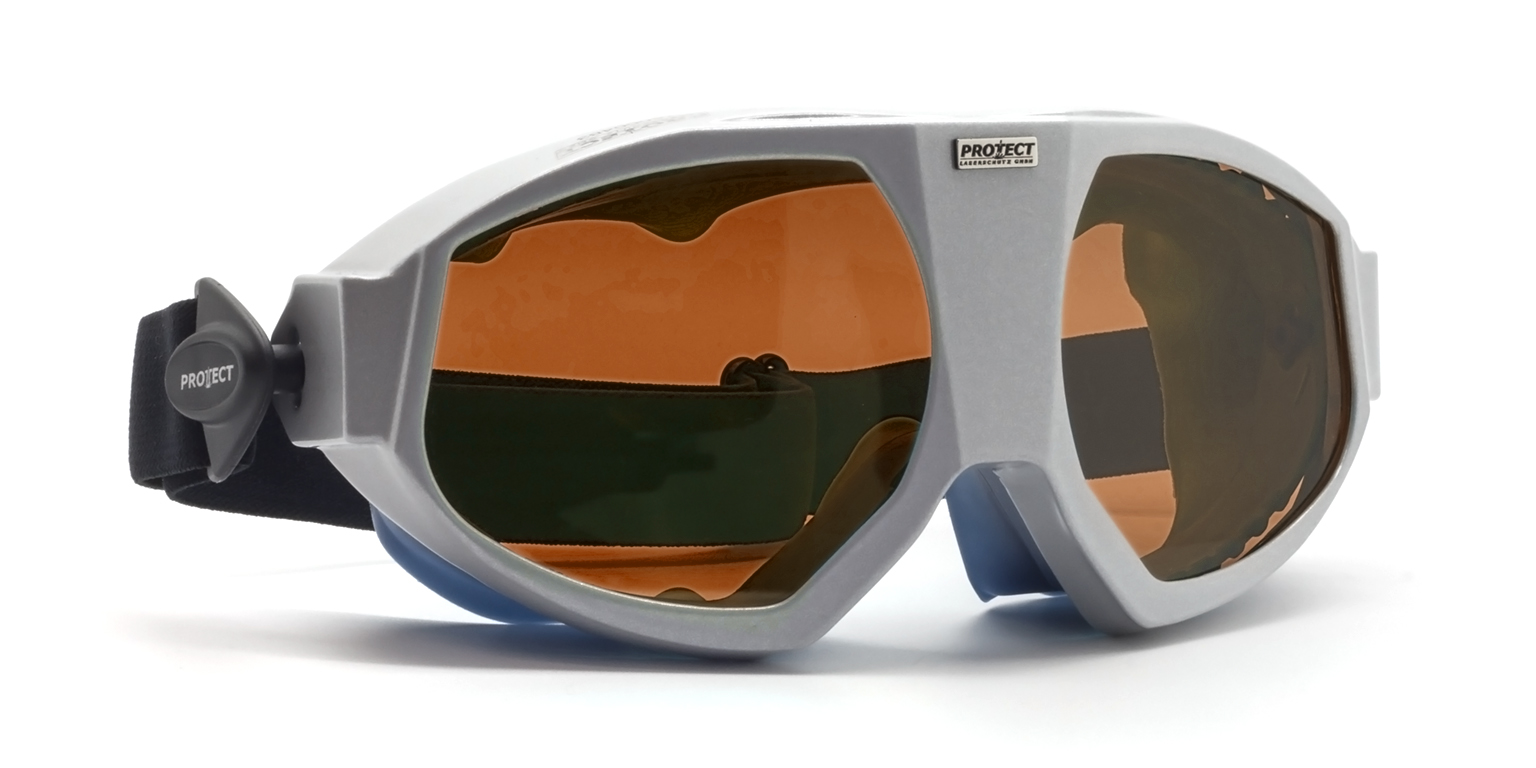

Laser Safety Eyewear GLADIATOR (Filter #0358)

Laser Safety Eyewear SPECTOR (Filter #0358)
