Laser Safety Filter #0338

000-K0338

The laser safety filter #0338 by PROTECT-Laserschutz is suitable for the following lasers: Diode laser (650 nm), Disk laser (1030 nm) and Nd:YAG laser (1064 nm). The laser safety filter consists of a blue special plastic and impresses with a daylight transmission of approx. 41 % at low thickness. The laser safety filter is CE certified according to the regulations of EN 207.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Specifications Filter

Order Information

All available frames

The Laser Safety Filter #0338 is available in the following frames.

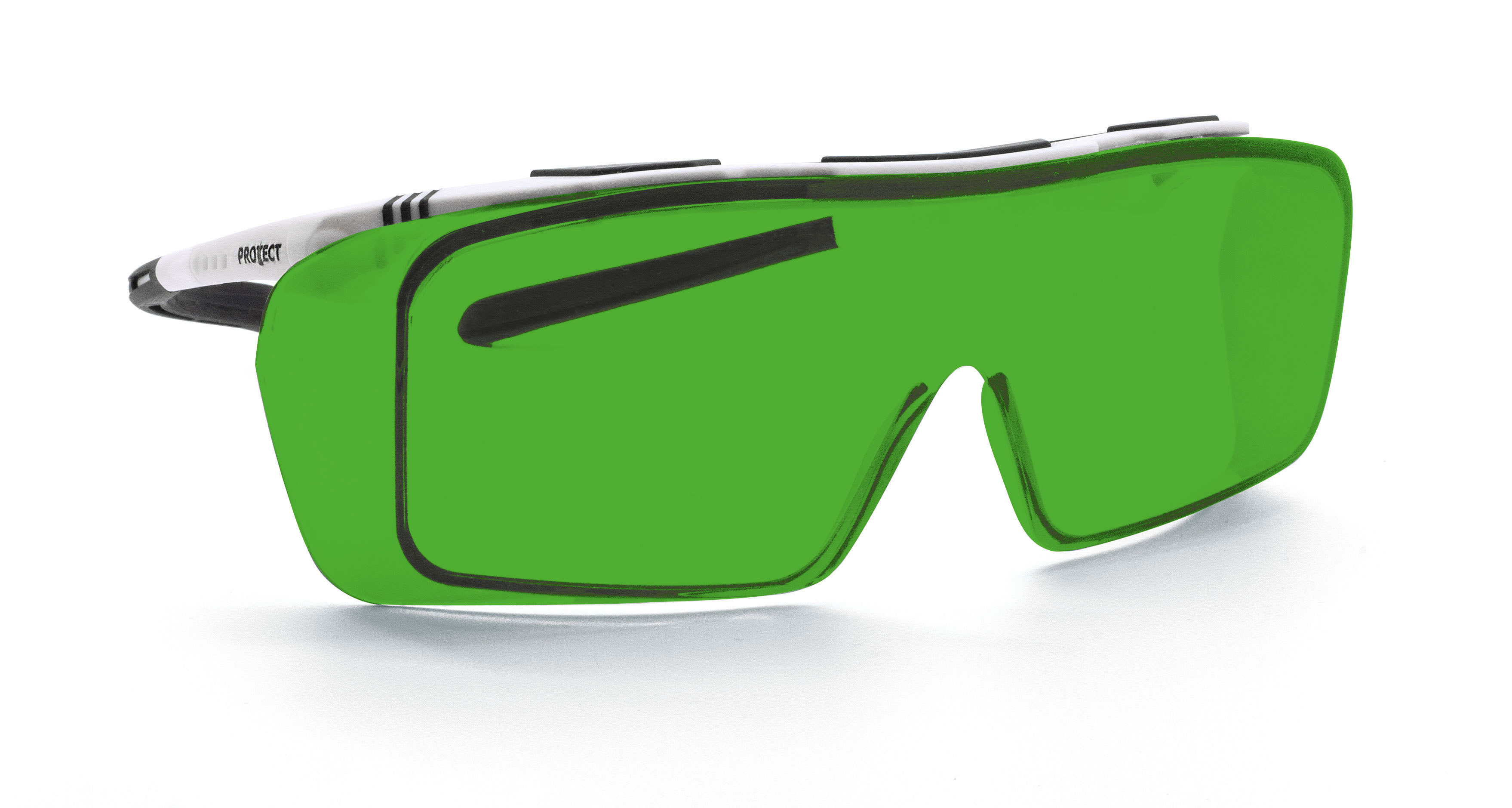

Laser safety eyewear ONTOR (Filter #0338)

Wavelength (in nm)	Protection level acc. to EN 207
610 - 625	DIRM LB1 (OD 1+)
>625 - 629	DIRM LB2 (OD 2+)
>629 - 635	DIRM LB3 (OD 3+)
>635 - 640	DIRM LB4 (OD 4+)
>640 - 643	DIRM LB6 (OD 6+)
>643 - 658	D LB6 + IRM LB7 (OD 7+)
>658 - 664	DIRM LB4 (OD 4+)
>664 - 668	DIRM LB3 (OD 3+)
>668 - 672	DIRM LB2 (OD 2+)
>672 - 755	DIRM LB1 (OD 1+)
>755 - 785	DIRM LB2 (OD 2+)
>785 - 815	DIRM LB3 (OD 3+)
>815 - 860	DIRM LB4 (OD 4+)
>860 - 910	DIRM LB5 (OD 5+)
>910 - 930	DIRM LB6 (OD 6+)
>930 - 950	D LB6 + IRM LB7 (OD 7+)
>950 - 1040	D LB6 + IM LB8 + R LB7 (OD 8+)
>1041 - 1065	D LB6 + IRM LB7 (OD 7+)
>1065 - 1073	DIRM LB6 (OD 6+)
>1073 - 1083	DIRM LB5 (OD 5+)
>1083 - 1095	DIRM LB4 (OD 4+)
>1096 - 1100	DIRM LB3 (OD 3+)
