Laser Safety Filter #0339

000-K0339

The laser safety filter #0339 by PROTECT-Laserschutz is suitable for the following lasers: He:Ne laser (633 nm), diode laser (650 nm) and Ruby laser (694 nm). The laser safety filter consists of a blue special plastic and impresses with a daylight transmission of approx. 61% at low thickness. The laser safety filter is CE certified according to the regulations of EN 207.

Please take care, if calculating the needed protection levels for your laser application, and match them with the protection levels on the laser safety eyewear. The employees of PROTECT-Laserschutz are looking forward to assist you by choosing the right safety equipment.

Protection Level

Specifications Filter

Order Information

All available frames

The Laser Safety Filter #0339 is available in the following frames.

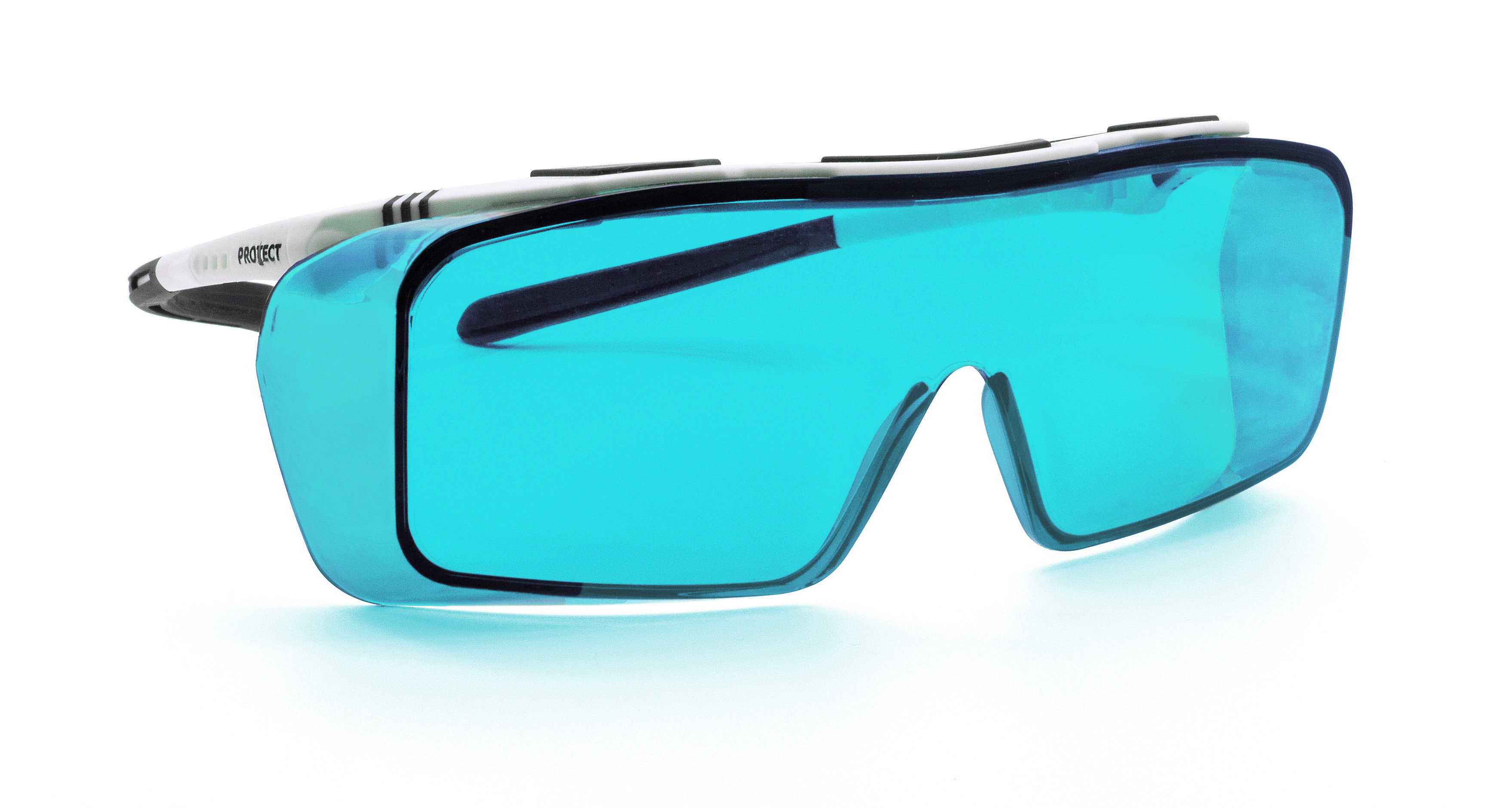

Laser safety eyewear ONTOR (Filter #0339)

Wavelength (in nm)	Protection level acc. to EN 207
620 - 672	DIR LB1 (OD 1+)
>672 - 679	DIR LB2 (OD 2+)
>679 - 682	DIR LB3 (OD 3+)
>682 - 685	D LB3 + IR LB4 (OD 4+)
>685 - 707	D LB3 + IR LB5 (OD 5+)
>707 - 709	D LB3 + IR LB4 (OD 4+)
>709 - 712	DIR LB3 (OD 3+)
>712 - 716	DIR LB2 (OD 2+)
>716 - 722	DIR LB1 (OD 1+)
	PF CE

Laser Safety Filter #0339

All available frames

Laser safety eyewear ONTOR (Filter #0339)
